What Is an Air Flow Control Valve?
Want to control how fast your pneumatic system moves? That’s exactly what airflow valves do. They manage how fast compressed air moves through a circuit, which in turn controls the motion of actuators like cylinders and air motors.
If air flows too quickly, actuators might slam or behave unpredictably. If it’s too slow, system efficiency suffers. A well-tuned flow control valve finds the sweet spot—balancing speed with precision.
Typically, these valves are installed near the actuator. They can be configured to manage either the incoming or outgoing air, depending on whether you’re trying to control extension, retraction, or both.

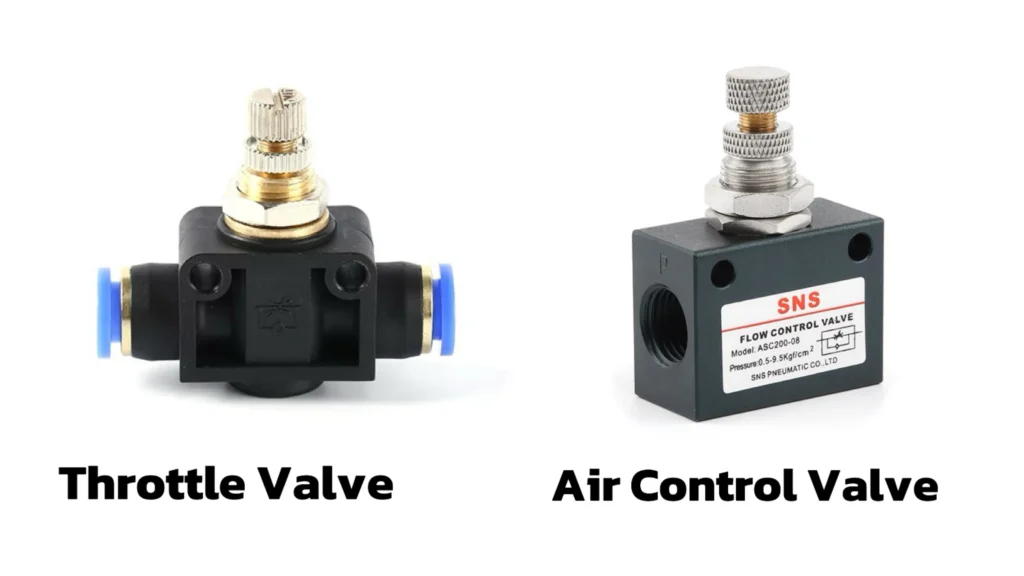

Throttle Valve vs. Flow Control Valve – What’s the Difference?
These two types often get lumped together, but they serve different purposes:
- Throttle Valves: These restrict airflow in both directions. Think of them like the nozzle on a garden hose—you can tighten or loosen the flow, but it works the same both ways.
- Flow Control Valves: A step up in design. They combine a throttle with a one-way check valve, allowing free airflow in one direction and controlled flow in the other. This asymmetry is key for precise actuator control.
Example: Imagine a pneumatic press that needs to extend quickly to save time, but retract slowly to avoid damaging a delicate part. A flow control valve makes that possible.
How Does an Air Flow Control Valve Actually Work?
The core component is an adjustable orifice—often controlled by a needle or knob. This orifice determines how much air can pass through the valve.
Here’s what happens inside:
- Air enters the valve body.
- If it’s going in the free-flow direction, it bypasses the restriction via a check valve.
- If it’s going in the controlled direction, it must squeeze through the orifice, which you can manually adjust.
This setup enables fine-tuned control over actuator motion, which is especially useful in systems where timing and coordination are critical—like robotics or automated pick-and-place machines.

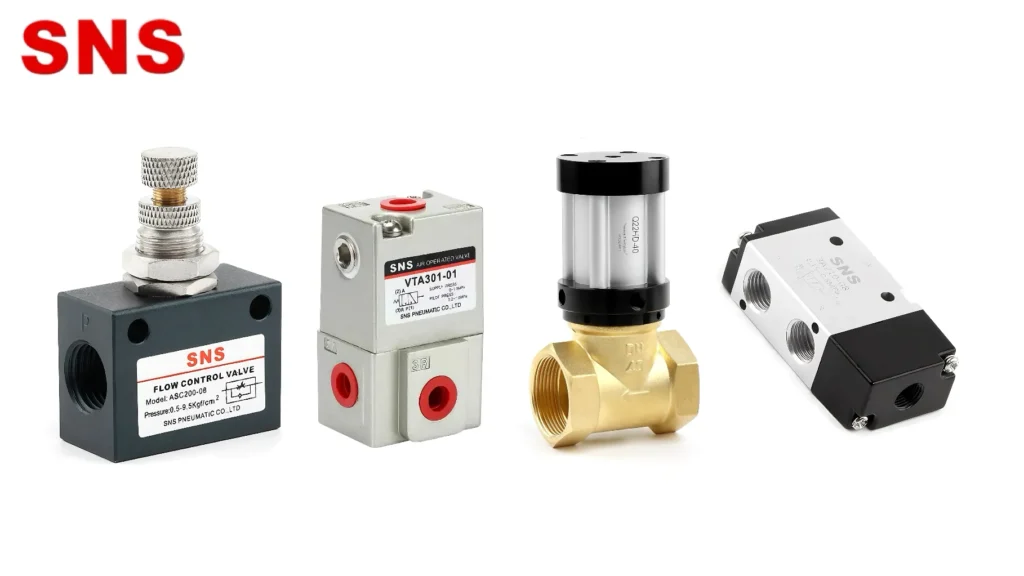

What Are the Different Types of Air Control Valves?
Different air control valves serve unique purposes in pneumatic systems:
- Needle Valves: Provide manual, precise control over flow. Where precision matters more than pressure, this valve excels.
- Flow Control Valves with Check Valves: Let air flow freely in one direction while controlling it in the other—perfect for cylinders.
- Quick Exhaust Valves: Speed up retraction by venting air directly to the atmosphere, bypassing the control valve.
- Pressure Relief Valves: Act as safety devices to protect systems from dangerous overpressure conditions.
- Proportional Valves: Electronically controlled valves that allow real-time flow adjustments. Ideal for dynamic systems that require variable speed and pressure.
What Happens When an Air Control Valve Fails?
A failing air control valve can grind your system to a halt—or worse, create unpredictable movement that damages equipment or injures operators.
Here are common symptoms:
- Stalling or jerky actuator motion: May result from a clogged or stuck valve.
- Uncontrolled actuator movement: Often caused by a malfunctioning check valve that fails to prevent reverse flow.
- Air leaks: Usually due to worn seals, cracked housings, or poorly fitted connections.
Troubleshooting Tip: Always verify airflow direction during installation. Many issues stem from incorrect orientation, especially in flow control valves with integrated check valves. Preventative maintenance matters. Regular inspections, clean dry air, and proper lubrication can significantly extend valve life and reduce downtime.
Where Should You Install an Air Control Valve?
Valve placement plays a big role in system performance. Here’s what to keep in mind:
- Install close to the actuator: Minimizes lag and improves control.
- Use meter-out configuration: This controls the exhaust side, providing smoother and more consistent movement—especially in vertical applications.
- Avoid long tubing runs: Long distances between the valve and actuator can create delays and pressure drops.
Practical Tip: In vertical applications, a meter-out setup helps prevent free fall if pressure is lost, making it safer and more predictable.
Do You Need Additional Components for a Flow Control Valve?
Please Check supporting components enhance performance and reliability:
- Check Valves: Ensure air flows in only one direction to avoid backflow issues.
- Filters: Filters protect your valves by trapping harmful debris before it can cause clogs or damage.
- Lubricators: Reduce internal friction and wear, especially in fast-cycling systems.
- Silencers: Cut down exhaust noise—important in work environments where noise levels matter.
Example Setup:
- FRL unit (Filter-Regulator-Lubricator) upstream to condition incoming air.
- Flow control valve installed near the actuator.
- Silencer attached to the exhaust port.
This arrangement ensures longer valve life, better energy efficiency, and smoother, quieter operation.
