How to Choose the Right Pneumatic Fitting and Accessory?
In any pneumatic system, whether it’s pneumatic fittings, valves, cylinders or tools, pneumatic connectors are core components for connecting pipelines, sealing gas and stabilizing pressure. They not only affect airflow efficiency but also directly relate to equipment safety and cost control.

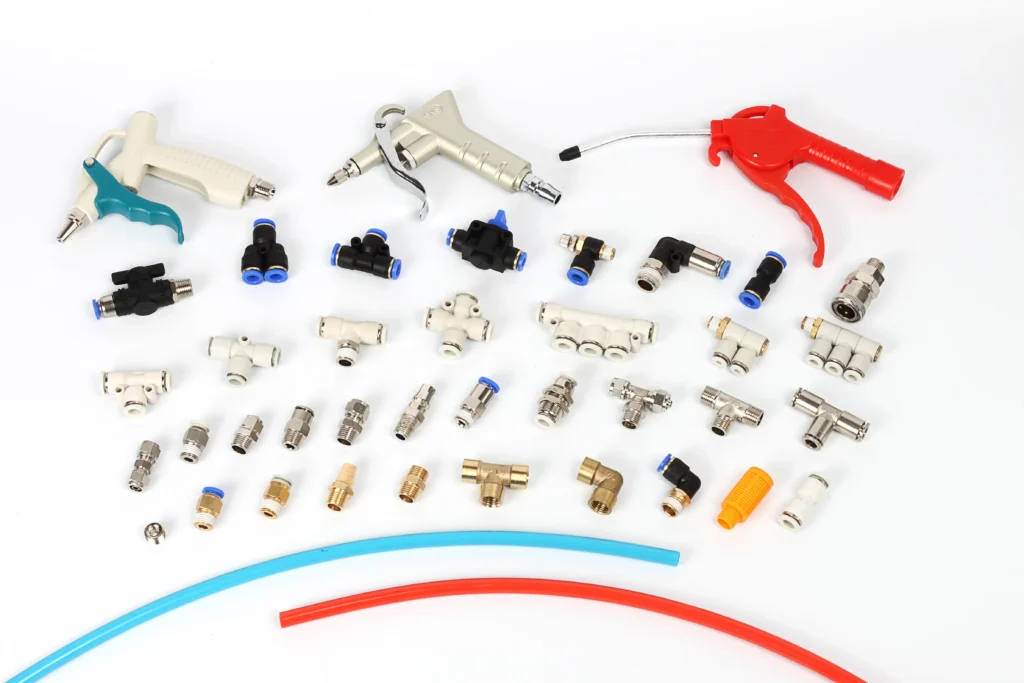

What is Pneumatic Fitting?
A pneumatic fitting is an interface accessory used to connect air tubing to pneumatic components. It provides quick connection and a stable seal that make it an essential component of all pneumatic pipe fittings systems.
Common applications include automated equipment, packaging lines, electronic assembly, machining and the automotive industry.
In the daily maintenance of pneumatic systems, fittings with different structures such as pneumatic quick disconnect fittings and quick-connect fittings are frequently used that significantly improve disassembly and assembly efficiency.
Common Types of Pneumatic Fittings
Common methods include quick fitting, threaded fitting and compression fitting.
Quick Fitting: After inserting the endotracheal tube, the internal retainer automatically locks in place; simply press the retainer to remove it.
Threaded Fitting: It achieves sealing through thread engagement and relies on tapered thread deformation or flat thread with a sealing washer.
Compression Fitting: Tightening the nut compresses the ferrule, causing plastic deformation and gripping the outer wall of the trachea to form a seal.
How to Identify a Pneumatic Fitting?
When selecting or replacing pneumatic fittings, you can quickly identify the fitting model using the following methods:
1. Check the connection method.
| Feature/Item | Quick Fitting | Threaded Fitting | Compression Fitting |
| Advantages | • Extremely easy to install • Convenient maintenance and modification • Most models come with a shut-off valve for safety | • Simple structure • Resistant to high pressure and high temperature • High degree of standardization and low cost (for the connector itself) | • Excellent vibration resistance • Reliable sealing and high pressure resistance • Wide range of applicable pipe types (flexible/rigid pipes) • Reinstallable |
| Disadvantages | • Strict requirements on the outer diameter of the trachea • May loosen under strong vibration • Higher cost than ordinary threaded fittings | • Cumbersome installation & fixed angle • Inconvenient disassembly, may require seal replacement • Risk of damage from over-tightening | • Most complex to install, requires training • Longest installation time • Highest cost for connectors and installation |
| Applicable Pipe | Standard outer diameter flexible hoses (nylon hoses, PU hoses) | Threaded component interfaces or pipes | Flexible hoses (Nylon, PU) and rigid metal tubing (copper, stainless steel). |
| Main Applications | • General factory automation equipment • Applications requiring frequent plugging and unplugging • Pneumatic tools | • Mounting interfaces for pneumatic components (e.g., cylinders, valves) • High-pressure pneumatic systems • Panel or base mounting | • High-vibration environments (e.g., construction machinery) • Instrumentation and measurement control systems • Piping systems using rigid metal conduits |
1. Measure the thread size.
Measuring the thread outer diameter and pitch will confirm the NPT, BSP, G or M thread type.
2. Identify male and female connectors.
External threads are male and internal threads are female. Quick-connect fittings can be identified by the connector structure.
Working Environment
When selecting pneumatic fittings or other pneumatic connectors, the working environment often determines their service life.
Temperature Variation: High-temperature environments require metal fittings; low-temperature environments require materials resistant to cracking.
Humidity and Oil: Corrosive environments require stainless steel or nickel-plated brass.

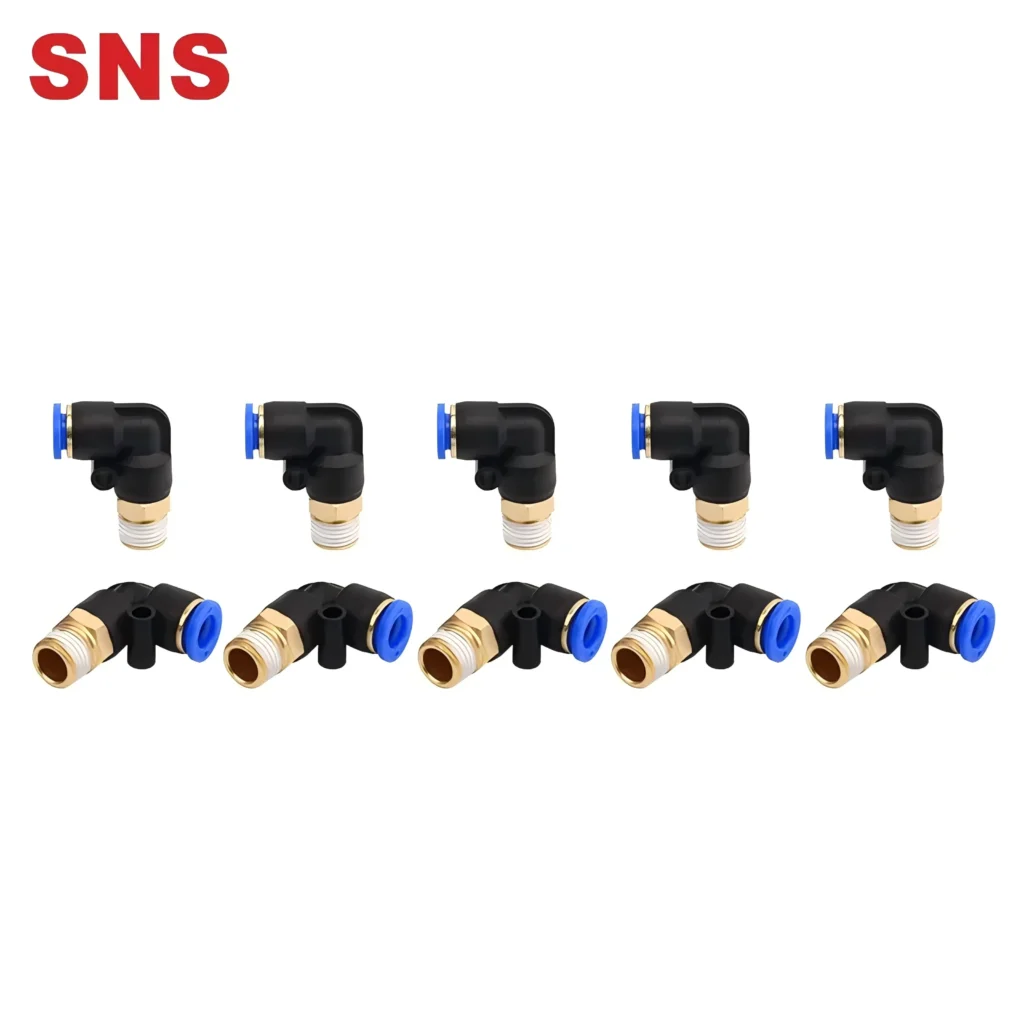

Installation Space: Confined spaces require elbows, small or compact fittings.
Material Selection

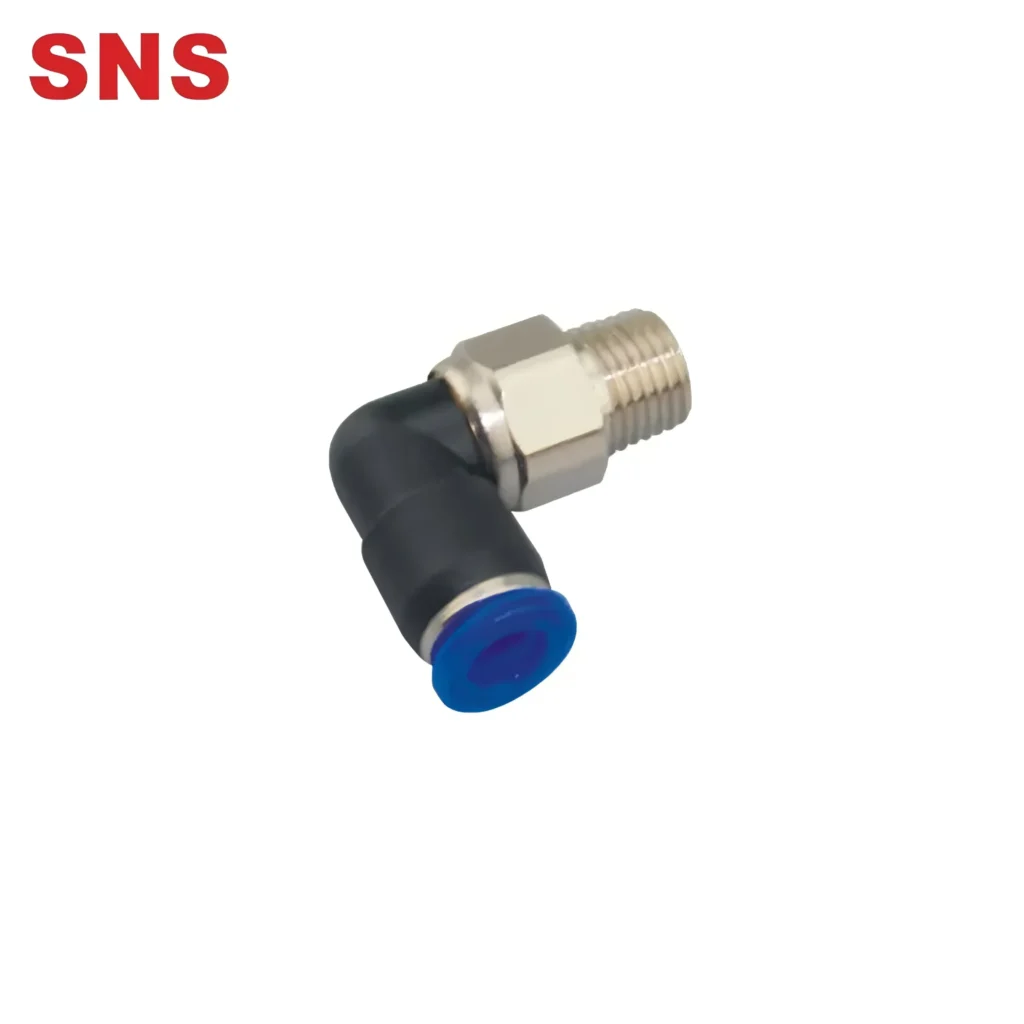

Brass (Applicable Temperature -20℃~120℃): Low cost, moderate corrosion resistance that is suitable for general compressed air systems.
Stainless Steel (Applicable Temperature -50℃~250℃): High pressure resistance (up to 1.6MPa) and chemical corrosion resistance that is used in the food or pharmaceutical industries (refer to ISO 8434 standard).

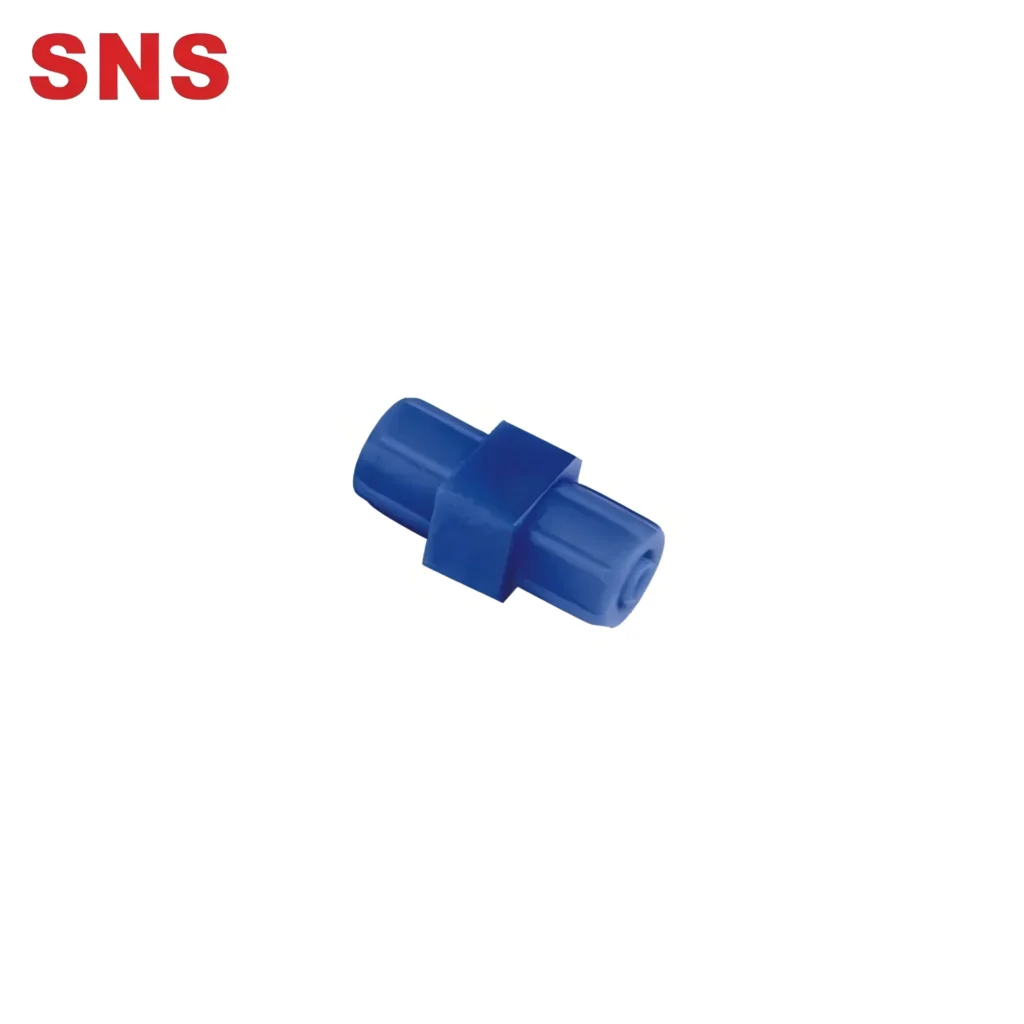

Engineering plastics (e.g., POM): Excellent insulation, but pressure resistance is only below 0.8 MPa that is suitable for lightweight equipment.
Aluminum alloys: Lightweight that is suitable for mobile equipment or weight-sensitive systems.
When choosing a material, pressure, medium, space and budget should be considered.
Pneumatic Fitting Selection Steps
• Determine the air hose specification: When selecting a pneumatic hose fitting, it is essential to strictly confirm its compatibility with the hose. Common pipe diameters include 4mm, 6mm, 8mm and 10mm.
• Confirm the thread type: NPT, BSP, G, Metric, etc.
• Select the fitting type: Quick-connect, compression fitting, fast-connect, threaded, etc.
• Confirm pressure and flow requirements: Different pressure requirements necessitate selecting matching fittings and combinations of pneumatic hoses and fittings. For pneumatic tools with high flow rates, upgrading to 3/8 or 1/2 fittings is necessary.
• Select the material based on the working environment: Oily, corrosive, high-temperature, high-cleanliness environments.
• Check if the installation space is compact.
• Finalize brand, standard and compatibility with equipment interfaces.
Installation Guidelines
When installing any pneumatic piping and fittings, the following rules must be followed:
• The air hose must be fully inserted and securely tightened.
• Threads must be sealed with sealing tape or sealant according to standards.
• The piping should be routed naturally that avoids excessive bends.
• The connector should be tightened according to the torque specification to avoid damaging the threads.
• The direction of the elbow should be adjusted before tightening to ensure unobstructed pipeline flow.
Maintenance and Troubleshooting
In complex pneumatic piping systems, regular inspection of all fittings and hoses is crucial.
Daily Inspection
• Visually inspect pneumatic fittings weekly for cracks and rust.
• Use soapy water to check for leaks; if bubbles persist for 3 seconds without bursting, it indicates a leak.
Periodic Maintenance
• Clean the filter and lubricate moving parts such as quick-connect fitting springs every 6 months.
• Seal replacement cycle: 2 years for nitrile rubber and up to 5 years for fluororubber (shortened to 1 year in chemical environments).
Common Troubleshooting
• Air Leakage: 80% of cases are due to aging of the sealing ring. Replacement requires matching the original manufacturer’s hardness (typically 70-90 Shore A).
• Difficulty Pulling Out the Hose: Check for deformation of the retaining ring. Insufficient lubrication increases friction by 40%.
• Extended Suggestion: For high-frequency vibration environments, metal fittings with locking mechanisms can be used that improve vibration tolerance by over 50%.
Conclusion
Through the above content, you should now have a basic understanding of different types of pneumatic fittings and how to select them. In practical applications, scientifically selecting fittings based on factors such as environment, material, pressure and hose diameter can significantly improve the stability and lifespan of pneumatic systems.
