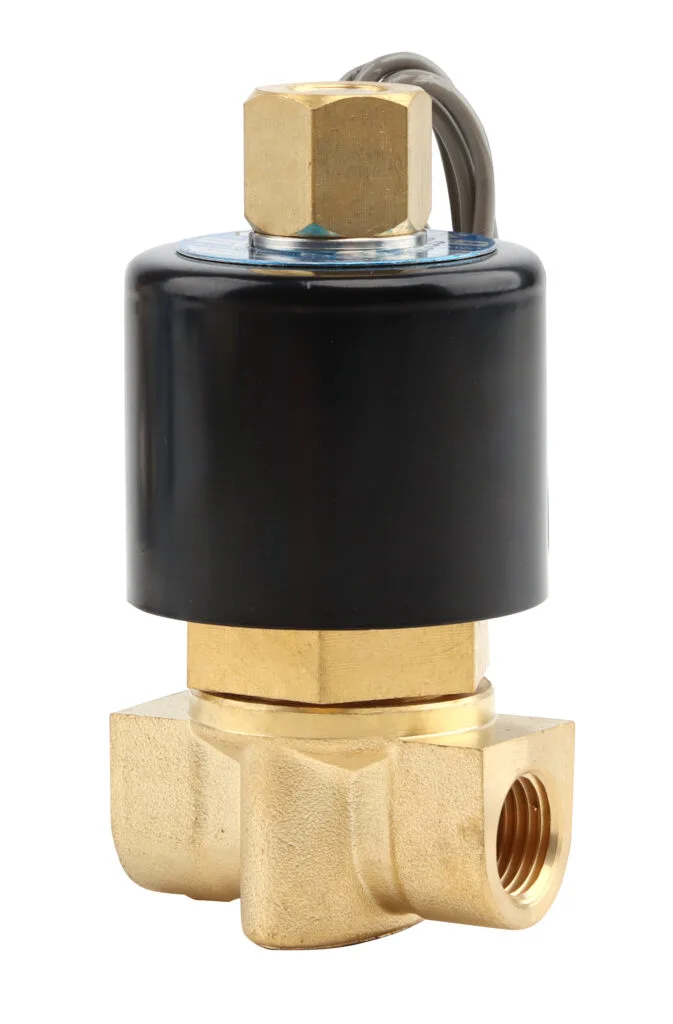

A solenoid valve is an electromechanically operated valve, commonly used to control the flow of fluids or gases. Understanding how to troubleshoot and repair these devices is crucial for maintaining system efficiency and preventing downtime.
Discovering the steps to effectively diagnose issues with a solenoid valve can be both rewarding and economically beneficial. Learn the key techniques that will allow you to restore functionality and ensure reliability in your fluid control systems.

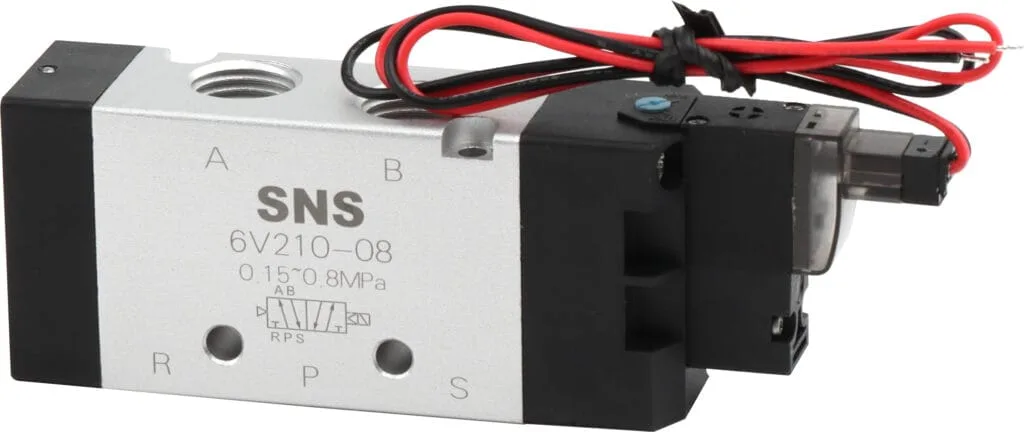

How do I know if my solenoid valve is bad?
Determining the health of a solenoid valve is essential for ensuring proper function in fluid control systems. Here are specific indicators that may signal a malfunctioning solenoid valve:
- Abnormal Noises: Listen for unusual sounds such as humming, buzzing, or clicking when the valve is activated. These sounds are often indicative of an electrical issue within the coil or mechanical problems with the moving parts.
- Erratic Behavior: Observe the response time of the valve. Delayed action or failure to open or close can mean that the solenoid is not receiving the correct voltage, or there’s an internal obstruction.
- Visible Damage: Physical inspections can reveal burns, corrosion, or damage to the coil windings, which compromise the integrity and operation of the solenoid valve.
- Electrical Tests: Use a multimeter to measure coil resistance. Compare your findings with manufacturer specifications; readings outside of normal range suggest a faulty coil.
- Leakage: A compromised seal or internal wear could result in leakage around the valve—either external leaks or passing (leaking through) when closed.
- Inconsistent Flow Rates: Fluctuations in flow rate while operating under standard conditions can indicate issues with internal components like diaphragms or seals.
- Power Supply Issues: Ensure that power supply voltages match those required by the solenoid valve; deviations could cause improper functioning.
- Professional Diagnostic Equipment: Utilizing tools such as diagnostic controllers can help pinpoint failures by providing error codes and operational feedback on solenoid performance.
Identifying these symptoms early on is critical in avoiding potential system failures and downtime due to a defective solenoid valve. Addressing issues promptly helps maintain system efficiency and prolongs equipment life cycle.

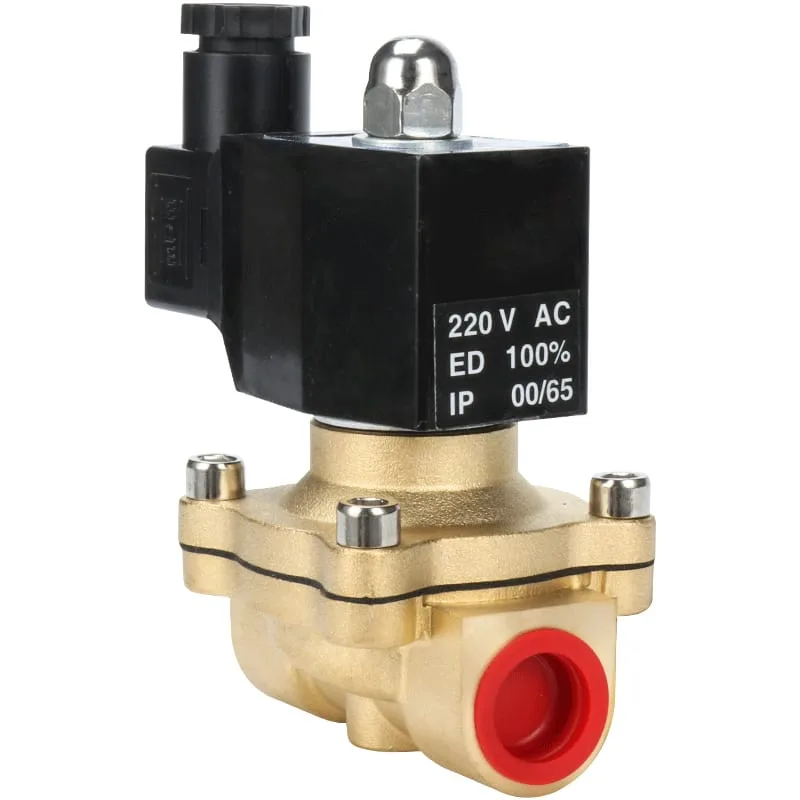

How To Repair a Solenoid Valve
1.Power Isolation and Fluid Shutdown
Before attempting to repair a solenoid valve, it is imperative to ensure the safety of the working environment by carrying out power isolation and fluid shutdown. This process involves a series of steps that must be followed meticulously to prevent any accidental discharge or electrical hazard during the repair.
- Turn Off Power Supply: Locate and switch off the power source connected to the solenoid valve. This may involve switching off a circuit breaker or removing a fuse in an electrical panel to ensure complete electrical isolation of the valve.
- Lockout/Tagout (LOTO) Procedures: Apply lockout/tagout devices as per regulatory standards to ensure that the energy supply remains disconnected throughout the repair process, and cannot be inadvertently re-energized.
- Drain Fluids: If the system contains pressurized liquid or gas, slowly bleed off pressures using release valves and allow all fluids within the valve or associated piping to drain completely.
2.Disassemble the Solenoid Valve
Disassembling a solenoid valve requires careful attention to detail and precision to ensure that each component is handled correctly. Follow these steps:
- Extract the Valve: Remove the valve from its operational environment, ensuring that you take note of its orientation and connection points for ease of reassembly.
- Release Pressure: Before opening the valve, make sure any trapped pressure is safely vented.
- Detach Coil Assembly:
- Loosen and remove any securing nuts or clips.
- Lift the coil away from the valve body carefully; take note of any washers or spacers that may need to be replaced during reassembly.
- Remove Solenoid Components:
- Take care when removing the armature tube assembly; inside are delicate parts such as O-rings, springs, and the plunger which may require careful handling.
- Keep track of each part’s order and orientation as it’s removed to aid in accurate reassembly.
- Inspect O-Rings and Seals:
- Check for damaged seals or O-rings which will typically be replaced during standard maintenance procedures to prevent leaks upon reinstallation.
- Unscrew Valve Body:
- Depending on design, unscrew any bolts or screws holding together parts of the valve body.
- Separate components such as bonnets, diaphragms, or pistons by lifting them out in a methodical manner.
- Take Note of Part Alignment:
- Pay attention to how parts align within the housing for proper functionality post-repair.
- Clean Exposed Surfaces:
- Wipe down exposed surfaces ensuring they’re free from debris and contaminants before new parts are installed.
- Organize Parts for Reassembly:
- As you disassemble, keep components organized so they can easily be re-identified during replacement and reassembly.
3.Component Identification
In the process of repairing a solenoid valve, accurate identification of each component is central to addressing malfunction or wear and tear. This stage involves meticulously analyzing and categorizing the parts of the solenoid valve assembly, which typically include:
- Solenoid coil: This electromagnet is crucial for valve operation and must be inspected for signs of burning or damage.
- Plunger or core: The movable iron core interacts with the electromagnetic field. Check for any abrasion that may hinder its free movement.
- Spring: This component returns the plunger to its original position when de-energized. Ensure it has sufficient tension and no deformation.
- Orifice(s): These passages control fluid flow and should be clear of obstruction or contamination.
- Seals and O-rings: Responsible for preventing leaks, they must remain elastic and undamaged.
- Bonnet: Housing for internal components; examine for cracks or thread damage.
- Body: The valve’s main structure that contains the fluid path, should be checked for corrosion or cavitation damage.
4.Revision Set Selection
When preparing to repair a solenoid valve, selecting an appropriate revision set is imperative. This step guarantees that the repaired valve meets the required specifications and functionality. Let us detail the critical factors in choosing revision sets:
- Revision Kit Parts: Every repair kit will contain an assortment of parts necessary for the refurbishment process. Ensure that you have a complete list, which typically includes O-rings, gaskets, seals, and diaphragms — components most prone to wear and degradation.
- Kit Variations: There are often multiple variations of kits available for a given solenoid valve model. These variants might differ by material composition or size. Review your valve’s specifications thoroughly to pick the exact match – errors here can lead to malfunction or further damage.
- Compliance and Certification: It is not only about ensuring mechanical compatibility; it’s also ensuring regulatory compliance. The replacement parts should meet industry standards such as ISO, CE, or ANSI to maintain safety protocols and performance criteria. Furthermore, valves used in specific industries may require additional certifications related to cleanliness (for food processing) or resistance (for chemical industries).
5.Component Replacement
When replacing components of a solenoid valve, it is imperative to ensure that the correct parts are used and that the process is carried out systematically to maintain the integrity and functionality of the valve. Here is a list of detailed steps for component replacement:
- Identification of Parts: Ensure that you have all the necessary replacement parts on hand. Refer to your component identification guide or schematic from the manufacturer to match new components with those being replaced.
- Seals and O-Rings: Carefully remove any seals, gaskets, and O-rings from the disassembled parts. Replace them with new ones from your revision set, making sure they fit snugly without any twists or stretched areas.
- Internal Components:
- If the plunger or core is damaged, replace it by carefully inserting a new one into the solenoid tube.
- Inspect springs for wear or deformation; replace those failing to meet specifications.
- Examine diaphragms or pistons for any signs of wear or damage and install new ones as required.
- Electrical Components:
- Check coils for continuity using a multimeter; if faulty, equip with an exact replacement ensuring voltage ratings match.
- Replace any worn electrical connectors or wiring that may compromise electrical connections with high-quality equivalents.
- Lubrication: Apply suitable lubrication to moving parts and seals as specified by the manufacturer guidance to prevent friction-related wear after reassembly.
- Tightening Torque: Follow torque specifications meticulously during reassembly to avoid over-tightening which can cause component damage or under-tightening leading to leaks or malfunction.
6.Reassembly and Testing
Methodically reconstruct the solenoid valve in accordance with the guidelines provided by the manufacturer. Ensure that each component is accurately positioned and securely fastened. Prior to re-energizing the system, verify the correct installation of all parts.
7.Testing and Validation
After reassembling a solenoid valve, the testing and validation process is critical to ensure that the valve functions correctly. This requires a series of checks and tests:
- Manual Operation Test: Manually activate the solenoid valve to ensure it moves freely without sticking. This can be done by applying power to the solenoid coil and listening for a distinct click, indicating it is operating.
- Leakage Check: With the fluid supply turned on, examine all connections for leaks. It is essential for both safety and functionality that the valve does not leak any fluids.
- Electrical Continuity Test: Use a multimeter to check electrical continuity in the coil. A malfunctioning coil won’t create the electromagnetic field necessary to operate the valve.
- Response Time Measurement: Assess how quickly the valve responds when activated. Delays might indicate underlying issues with electrical components or mechanical hindrances within the valve itself.
- Pressure Test: Subjecting the system to normal operating pressure, observe if the solenoid valve holds pressure without leaking or showing signs of weakness.
- Operational Cycle Test: Put the valve through multiple cycles of operation to examine consistency in performance over time, and make sure it maintains its integrity during repeated use.
- Power Consumption Analysis: Monitor and verify that power consumption matches expected parameters indicating that the coil is functioning correctly within its designed specifications.
7.Proper Storage and Documentation
Once the solenoid valve has been serviced, it’s imperative to proper storage and documentation to ensure long-term operability and compliance with any relevant standards.
In conclusion
In conclusion, successfully repairing a solenoid valve requires careful diagnosis of the problem, appropriate tools, and meticulous execution of the repair steps to ensure the valve’s optimal performance and longevity.
Are you ready to put your newfound knowledge to work? Begin by carefully assessing your solenoid valve issues, and then proceed with confidence as you apply these detailed instructions to restore proper function. And remember, if you require further assistance or professional support, don’t hesitate to reach out for expert help.
