Fuel, oil, gas, and propane solenoid valves are critical components in managing the flow and release of various fuels in many industrial and residential applications. These electrically-operated valves ensure precise control over fuel systems, contributing to both operational efficiency and safety.
Understanding the functionality and importance of solenoid valves can significantly enhance system reliability and prevent potential hazards associated with fuel management. Discover how these pivotal devices operate within your everyday appliances and the technological advancements that continue to improve their performance.
What are Fuel, Oil, Gas, and Propane Solenoid Valves?

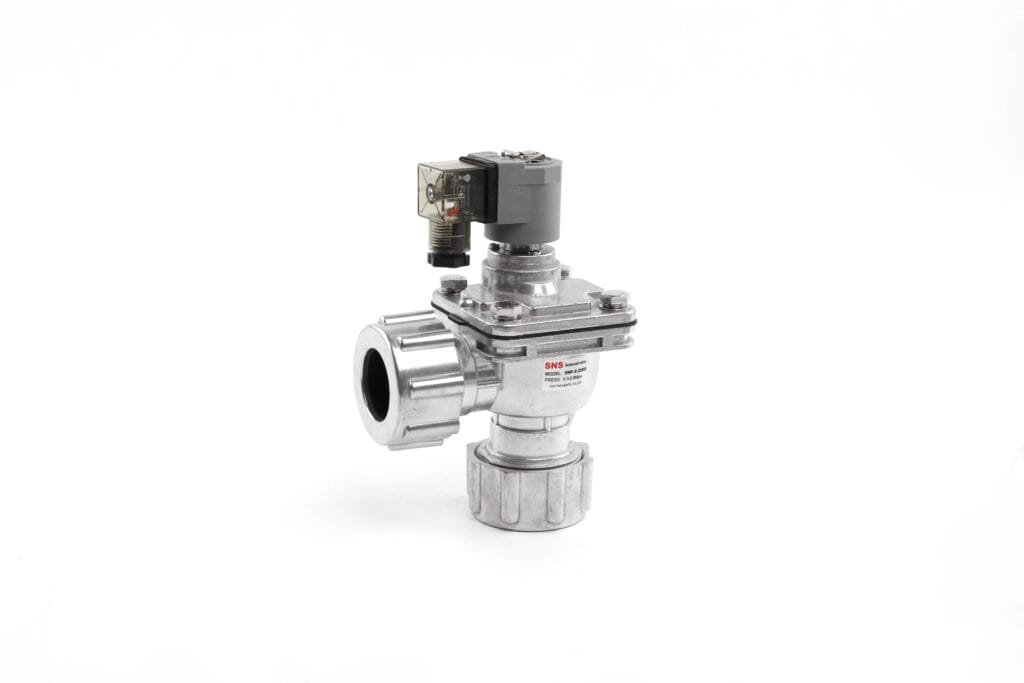

Fuel, oil, gas, and propane solenoid valves are electromagnetic devices designed to control the flow of these various types of fuel. They operate using an electric coil to generate a magnetic field that actuates a plunger within the valve body, thereby opening or closing the valve. These valves offer precise control over fluid flow in a system and are commonly used in applications where remote or automatic control is desired.
Solenoid valves for fuels like oil and gas must be crafted from materials compatible with these substances to prevent corrosion or damage. Gas solenoid valves specifically manage combustible gases such as natural gas or propane and therefore must comply with strict safety standards due to the explosive nature of these substances.
When electricity flows through the coil of a solenoid valve, it creates a magnetic field that pulls on the plunger, often connected directly to the valve seal. When energized, this movement allows fuel to pass through; conversely, when de-energized, a spring or other mechanism often returns the plunger to its original position to stop fuel flow.
Given their critical role in managing highly flammable substances, these solenoid valves usually incorporate failsafe mechanisms designed to revert them to a safe state in case of power interruptions. The reliability and fast response times of these valves make them integral components in many industrial processes involving fuels.
Pros of Solenoid Shut-off Valves
Solenoid shut-off valves are highly advantageous in applications requiring precise control of fuel, oil, gas, and propane flow. These valves are esteemed for their quick response time and ability to accurately stop and start the flow of fluids without manual intervention. They excel in automation because they can be easily integrated into electronic control systems, allowing for remote operation and facilitating complex processes that demand frequent or rapid switching.
Moreover, solenoid valves have minimal moving parts which contribute to their reliability and reduced maintenance needs. This inherent simplicity leads to a longer operational life and lower total cost of ownership compared to more mechanically complex valve types. The direct-acting nature of these valves provides great performance even at low-pressure differentials.
Another benefit includes the safety aspect; solenoid shut-off valves can be designed as failsafe “closed” or “open,” meaning in case of a power failure or emergency, they will automatically revert to their default state, thus preventing potential hazards associated with unchecked fluid flow.
Furthermore, solenoid valves offer versatility in terms of size and design—compact versions allow for installation in tight spaces without compromising performance. From miniature pilot valves to larger mainline infrastructure controls, there is a wide array of sizes that accommodate versatile application requirements.
Lastly, solenoid-operated valves often feature low power consumption due to efficient electromagnetic design which only uses energy when changing states. Not only does this make them environmentally friendly by decreasing energy usage where possible but also allows them to be used in off-grid conditions where power availability may be limited.
| Advantages | Description |
|---|---|
| Precision Control | Enables exact control over fluid flow automation; suitable for remote operation via electronic systems. |
| Quick Response | Capable of rapidly starting/stopping fluid flow which is crucial for many automated processes. |
| Reliability | Fewer movable parts result in less wear and lower maintenance; favorable lifecycle costs. |
| Safety Features | Default failsafe states prevent mishaps in the event of power failure or emergency conditions. |
| Versatility | Availability in various sizes supports a multitude of industrial applications; adaptable designs meet specific needs. |
| Energy Efficiency | Uses energy only when activating/deactivating leading to reduced operational costs and eco-friendly operation. |
Cons of Solenoid Shut-Off Valves
While solenoid shut-off valves are widely utilized for their reliability and efficiency in controlling the flow of fuel, oil, gas, and propane, there are certain drawbacks associated with their use. One of the primary disadvantages is their dependency on an electrical power source. In the event of a power outage or electrical failure, solenoid valves may fail to operate, thus potentially creating a hazardous situation if they are intended to be fail-safe.
Another limitation lies in the fact that solenoid valves can generate heat during operation. Extended periods of activation can lead to overheating, which might damage the coil or affect performance. This necessitates careful consideration of duty cycles and often requires additional safety measures such as thermal overload protectors.
Solenoid valves also have limited compatibility with certain fluid properties. Highly viscous fluids or those with large particulates can impair valve function leading to leaks or blockages. This means that intricate filtering systems may be needed when dealing with such fluids.
Moreover, rapid cycling of solenoid valves can result in wear and tear over time. Frequent switching increases mechanical stress on the components which can accelerate deterioration and reduce lifespan.
Additionally, due to their design involving small orifices and sharp edges within the valve body, there’s an inherent risk for noise generation during operation. Noise levels can sometimes exceed acceptable thresholds requiring additional measures for noise reduction.
Furthermore, response times may not be instantaneous due to the nature of electromagnetic actuation; this could be crucial in applications demanding swift action. Lastly, environmental factors such as extreme temperatures or corrosive atmospheres can severely affect the operation and durability of solenoid valves unless specifically designed for such conditions.
| Drawbacks | Description |
|---|---|
| Dependency on Power | Solenoid valves require an electrical power source; a power failure disengages the valve functionality. |
| Heat Generation | Prolonged use can cause heat build-up which may damage components unless mitigated by safety features like thermal overload protectors. |
| Fluid Compatibility | Limited by their design; highly viscous or dirty fluids can cause malfunctions necessitating filters systems. |
| Mechanical Stress | Rapid cycling leads to increased wear and tear reducing valve lifespan |
| Noise | Internal design features can create unacceptable noise levels during operation requiring noise-reduction methods |
| Response Time | The reaction might not be instant which could impact operations needing quick action |
| Environmental Sensitivity | Extreme temperatures and corrosive environments may degrade performance unless valves are designed for these specific conditions |
Solenoid Valves Selection of Materials (Fuel Gas, Fuel Oil, Natural Gas and Propane)
When selecting materials for solenoid valves used in controlling fuel gas, fuel oil, natural gas, and propane, it is essential to consider the compatibility of the valve materials with the media they will control. The primary purpose of these valves is to ensure safe operation and prevent leakage that can lead to safety hazards or system inefficiencies.
Brass is often chosen for fuel gases due to its good corrosion resistance and cost-effectiveness. However, when dealing with high-temperature applications or certain types of fuel oils that may contain sulfur or additional corrosive compounds, stainless steel becomes a better choice due to its superior resistance to heat and corrosion.
For natural gas applications, it’s common to find valves made from aluminum because of its light weight and excellent corrosion resistance. Aluminum solenoid valves are suitable for many gas-based applications provided the pressure and temperature conditions are within acceptable ranges.
Propane solenoid valves must handle both the chemical characteristics of propane and the pressure requirements of the system. Stainless steel is frequently used in these scenarios as well because it can withstand wide temperature variations while providing reliable performance under high pressures.
The seals within solenoid valves are also critical components; they must be made from materials compatible with gas types—usually nitrile for general usage but sometimes fluorocarbons like Viton® when higher temperature thresholds need to be met.
| Attribute | Preferred Material Choices | Considerations |
|---|---|---|
| Fuel Gas | Brass | Corrosion resistance, cost-effectiveness |
| Fuel Oil | Stainless Steel | High-temperature applications; resistance to sulfur/corrosives in oils |
| Natural Gas | Aluminum | Light weight, corrosion resistance |
| Propane | Stainless Steel | Resistance to broad temperatures; high-pressure handling |
| Seal Material (General) | Nitrile | Compatibility with various gases |
| Seal Material (High Temp) | Fluorocarbon (e.g., Viton®) | Required for high-temperature thresholds |
Selection criteria
When selecting solenoid valves for controlling fuel, oil, gas, and propane, the following criteria must be carefully evaluated to ensure functionality and safety:
- Selection of materials: The valve body and internal components should be made from materials compatible with the fluid being controlled. Common materials include brass, stainless steel, and plastic. Corrosive fluids may require special materials such as PTFE or PVC.
- Explosion-proof: For hazardous locations where explosive gases may be present, valves require explosion-proof ratings to avoid ignition sources. Certifications like ATEX or IECEx are often sought in these environments.
- The number of ways: This defines the flow paths in a valve. Common configurations are 2-way (one inlet and one outlet) and 3-way (additional port allows for exhaust or alternate flow).
- Switching function: It refers to whether the valve is normally open (NO) or normally closed (NC); choosing depends on whether the default state should allow or prevent fluid flow.
- Connection size: The size of the connections must match that of the piping system to maintain proper flow rates and prevent leaks.
- Type of connection: Connections can vary from threaded (NPT, BSPP) to flange-type or hose barb connections depending on installation requirements.
- Working pressure and response time: The valve must withstand system pressure while providing appropriate response times for opening and closing operations.
- Fluid temperature and ambient temperature: Both temperatures affect valve selection; materials and seals must handle operating conditions without degradation.
- Solenoid power supply: Solenoid coils require specific voltages; common options include 24V DC, 120V AC, and others. Selection aligns with available power sources.
- Approvals: Valves may need certifications such as UL, CSA, CE-marking confirming they meet industry standards for safety and performance.
- Degree of protection: Indicated by IP ratings which provide information about ingress protection against particles and water for safe operation in diverse environments.
Selection of Materials
The selection of materials for fuel, oil, gas, and propane solenoid valves is a critical factor in ensuring their reliability and durability. The environment in which the valve will operate dictates the material choice to a large extent. To provide excellent chemical resistance and withstand the corrosive nature of certain fluids, solenoid valves are often constructed from metals such as brass, stainless steel, or aluminum.
Brass is commonly used for its good machinability and resistance to corrosion by water, oil, and gas. Valves made from brass are generally not suitable for use with aggressive chemicals or environments where they might suffer from dezincification or stress cracking.
Stainless steel solenoid valves offer superior resistance to rust and high temperatures making them a good fit for harsh environments and applications involving corrosive fluids.
Aluminum provides a lighter alternative whilst still maintaining decent strength and corrosion resistance compared to heavier metal options but is not suitable for certain aggressive substances.
For seals within the valves, elastomers such as NBR (nitrile rubber), Viton, or Teflon might be utilized based on their compatibility with specific operating fluids – these materials ensure a proper seal that can withstand the wear and pressures typically experienced during operation.
| Material Type | Typical Application | Resistance Properties |
|---|---|---|
| Brass | Water, Oil, Gas | Corrosion-resistant; Not ideal for acids |
| Stainless Steel | Aggressive chemicals; High-temperature fluids | Superior corrosion resistance; Durable |
| Aluminum | General light-duty applications | Lightweight; Some chemical resistance |
| NBR | Oil & Hydrocarbons | Good abrasion resistance; Moderate fuels |
| Viton | Hydrocarbons; Acids & Alkalis | Excellent temperature & Chemical resistance |
| Teflon | Harsh Chemicals | High Temperature; Chemical resistant |
Explosion-proof
In the context of solenoid valves used for controlling the flow of fuel, oil, gas, and propane, special consideration is given to the explosion-proof feature. An explosion-proof solenoid valve is specially designed to operate safely in potentially explosive environments by containing any ignition or explosion within its housing. This is critical for applications in hazardous areas where combustible gases or vapors may be present.
The construction material of these valves must be robust enough to withstand the internal pressures from any ignition and prevent flame propagation outside the valve. Typical materials include aluminum or stainless steel with specific treatments to ensure they do not create sparks upon impact.
Certification according to national and international standards is a key aspect of explosion-proof solenoid valves. They must comply with certifications such as ATEX in Europe, UL for North America, or other relevant standards that affirm their suitability for use in explosive atmospheres.
Using an explosion-proof solenoid valve ensures compliance with safety regulations and maintains a safe operational environment, directly contributing to the prevention of industrial accidents related to fire and explosions caused by electrical sources.
The Number of Ways
The configuration of solenoid valves with respect to the flow paths they provide is termed as “the number of ways.” This characteristic denotes the number of ports or openings that a valve has. Generally, the types available are 2-way, 3-way, and 4-or-more-way valves.
2-way valves are the most rudimentary type, featuring one inlet and one outlet port. They play a fundamental role in systems by either allowing or blocking the flow of gas, oil, fuel, or propane when actuated.
3-way valves extend their functionality by offering three connections and two flow paths within a single valve body. These versatile components can be used for diverting flow from one line to another or to mix fluid streams coming from different sources.
Valves that possess more than three ports are referred to as 4-or-more-ways and typically serve complex applications requiring multiple flow paths to be controlled simultaneously. For example, these may be applied in some fuel mixing or selection operations where several inputs and/or outputs need to be managed carefully.
| Attribute | Description |
|---|---|
| 2-Way Valves | One inlet & one outlet – Simple open/close function |
| 3-Way Valves | Three ports – Diverter or mixer options |
| 4-or-More Way Valves | Multiple control paths for complex routing needs |
Switching Function
The switching function of a solenoid valve determines its operation mode—how it opens or closes in response to an electrical signal. This is critical for managing the flow of fuel, oil, gas, and propane through systems reliably and safely. There are typically two main types of functions: Normally Closed (NC) and Normally Open (NO).
In a Normally Closed valve, the default state is closed; it opens when voltage is applied to the solenoid coil, allowing fluid to flow through. Conversely, a Normally Open valve remains open when de-energized and closes upon receiving electrical power. These actions control the presence or absence of flow in various applications.
However, there are also more complex switching functions available. Some valves might offer multiple positions other than simply open or closed; for instance, they might alternate between different outlets or mix flows from different inputs.
Three-way valves can direct fluid to one of two outlets, while four-way valves can manage double-acting cylinders or toggle between inputs and outputs in system configurations that require such versatility. The choice comes down to the specific needs of the application and what will provide optimal operational security and efficiency.
| Switching Function | Description | Common Applications |
|---|---|---|
| Normally Closed (NC) | Valve opens when energized; default state is closed | Safety shut-off systems |
| Normally Open (NO) | Valve closes when energized; default state is open | Continuous flow systems where interruption requires power |
| Three-way | Can direct fluid to one of two paths | Diverter or selector applications for heating/cooling systems |
| Four-way | Manages double-acting cylinders or switches between ports in complex configurations | Pneumatic controls in automation systems |
Connection Size
When specifying a solenoid valve for use with fuels, oils, gases, and propane, connection size is a critical factor that must be carefully considered. The connection size directly corresponds to the flow rate requirements of the system and needs to align with existing piping or tubing dimensions. It determines the inner diameter of the port where the media enters or exits the valve and can influence the overall performance and efficiency of the system.
Industrial solenoid valves typically follow standard sizes ranging from 1/8 inch to over 2 inches. Selecting an inappropriate connection size can lead to complications such as excessive pressure drop if too small or insufficient control if too large. For optimal operation, it is vital to match the connection size of the valve with the required flow rate while considering any possible future expansions or modifications to the system.
The selection should also consider industry standards and compatibility with ancillary equipment. Precise matching ensures tight seals, prevents leaks, and maintains consistent flow dynamics within the controlled environment.
| Connection Size (inches) | Typical Applications |
|---|---|
| 1/8 – 1/4 | Low flow rate systems |
| 3/8 – 1/2 | Residential applications |
| 3/4 – 1 | Commercial installations |
| 1-1/4 – 2 | Industrial process systems |
| Over 2 | High volume flow circuits |
Type of Connection
The type of connection in a fuel, oil, gas, and propane solenoid valve is a critical aspect that determines how the valve will be integrated into an existing system. There are various types of connections that can be used depending on the requirements of the application and the design of the piping or tubing.
Threaded connections are common and allow for valves to be screwed directly onto pipework. These can either be National Pipe Thread (NPT) which is tapered and creates a seal through thread deformation, ensuring a snug fit, or British Standard Pipe (BSP), which can be either parallel or tapered.
Flanged connections provide a robust seal by fastening two flanges together with bolts. They are suitable for high-pressure systems and large pipe diameters but require more space around the valve for installation.
Compression fittings offer a method for connecting valves to tubes without threading. They use a nut and ferrule(s) to compress the tube against the fitting, creating a tight seal ideal for medium-high pressure applications.
Clamp or sanitary connections are featured in hygienic or sterile systems like those found in food processing or pharmaceuticals. They allow for easy assembly and disassembly while maintaining cleanliness.
Push-to-connect fittings offer quick assembly without the need for tools; these fittings are common in low-pressure applications where frequent disconnection may occur.
| Connection Type | Pros | Cons | Applications |
|---|---|---|---|
| NPT | Easy install without flanges/bolts | Requires proper alignment; May need sealant | General industrial & residential systems |
| BSP | Similar to NPT; choice between tapered/parallel threads | Sealant often needed for parallel threads | International applications |
| Flanged | High strength; Easy to inspect & clean | Bigger space needed; More complex install | High-pressure systems; Large pipes |
| Compression | Tool-less setup; Secure connection | Not reusable | Medium-high pressure systems |
| Clamp/Sanitary | Easily assembled/disassembled; Hygienic | Limited by system pressure capabilities | Food processing; Pharmaceutical |
| Push-to-Connect | Quick connect/disconnect without tools | Primarily suitable for low-pressure | Applications requiring frequent disconnection |
Working Pressure and Response Time
When considering the working pressure and response time for fuel, oil, gas, and propane solenoid valves, precise measurement and appropriate specifications are paramount. Working pressure refers to the maximum pressure at which a solenoid valve is designed to operate safely and effectively. It’s essential to match the valve’s working pressure with the system’s requirements to ensure optimal performance without compromising safety. A mismatch can lead to valve malfunction or even damage, potentially causing system failure or safety hazards.
Response time, on the other hand, is the duration it takes for a solenoid valve to fully open or close after receiving an electrical signal. This element is crucial in applications where rapid switching of fluid flow is required. A faster response time improves control precision in dynamic systems but may also demand more robust electrical components capable of handling such quick actions.
Fluid Temperature and Ambient Temperature
When considering fuel, oil, gas, and propane solenoid valves, understanding the effects of fluid temperature and ambient temperature is paramount. The materials used in the construction of a solenoid valve are chosen for their thermal capabilities to ensure proper functioning across a range of temperatures. Fluid temperature refers to the temperature of the media being controlled by the valve. The seals, body, and other internal components must be compatible with this temperature to avoid degradation or failure.
Ambient temperature pertains to the environmental conditions surrounding the valve. Excessive heat or cold in the valve’s environment can impact its performance and lifespan. It’s necessary to select a solenoid valve whose coil and housing can withstand these environmental conditions without sustaining damage or reduced efficacy.
Manufacturers will provide ratings for both fluid and ambient temperatures that indicate the operating limits of the valves. These limits must be strictly adhered to; exceeding them could lead to malfunctions, seal ruptures, or even create hazardous situations.

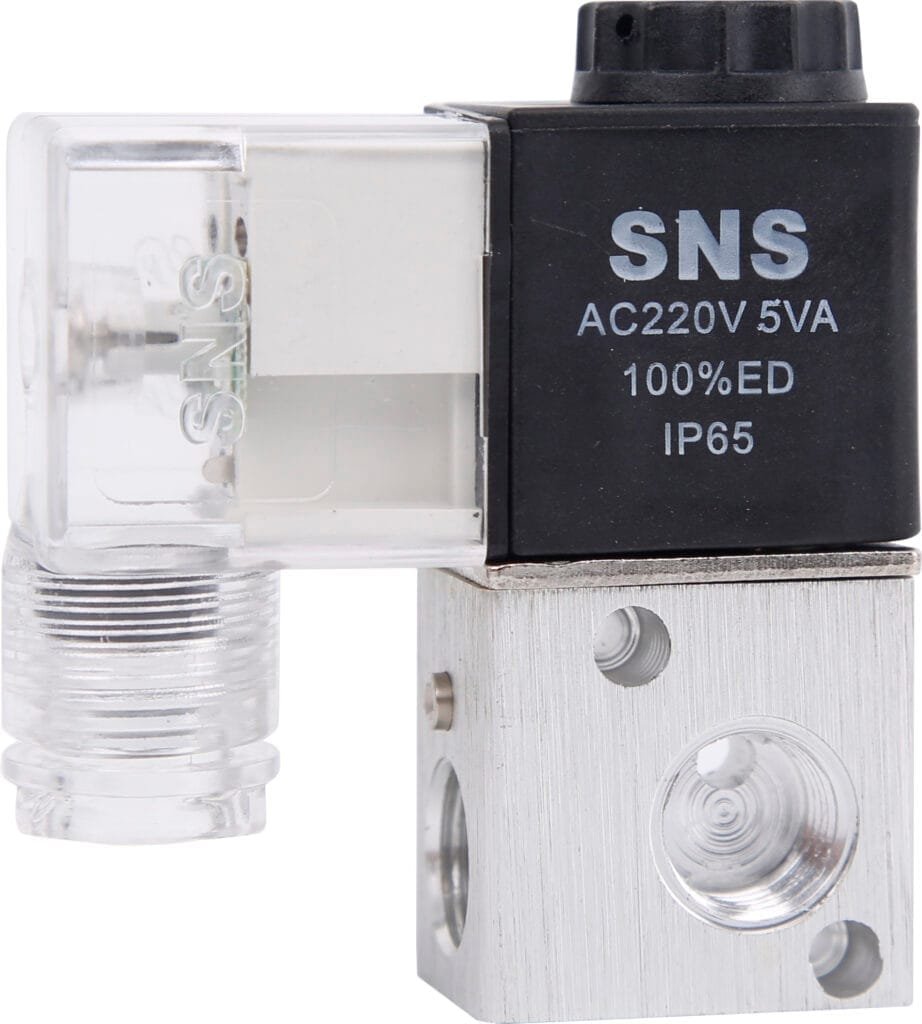

Solenoid Power Supply
The power supply for solenoid valves is a critical parameter that directly influences the valve’s performance and compatibility with the system it’s intended for. Solenoid valves, being electromagnetic devices, require a specific voltage and current to operate their coils effectively. The common voltages are generally 24V DC, 110V AC, or 220V AC, but they can vary depending on the region and application requirements.
An appropriate power supply ensures that the solenoid valve operates within its designed parameters without overheating or underperforming. For instance, when a solenoid valve is powered by an inadequate voltage, it may not generate sufficient magnetic force to move the plunger and open or close the valve. Conversely, an excessive voltage can lead to coil burnout and premature failure of the valve. Additionally, AC-powered valves may have different considerations than DC when it comes to inrush and holding currents.
Furthermore, some applications may require low-power solenoids designed for energy-saving purposes or battery-operated systems where standard power sources are not available. In these cases, special coils with lower power consumption are used.
It is also vital that any fluctuations in the power supply be accounted for; many solenoid valves are equipped with features that allow them to cope with variations without sacrificing performance. Whether installing new equipment or maintaining existing machinery, ensuring that your solenoid valves receive a stable and correct power supply will contribute significantly to their reliable operation.
Approvals
When dealing with solenoid valves for fuel, oil, gas, and propane, one critical aspect to consider is the range of approvals necessary to comply with international and regional standards. These approvals ensure that the valves meet specific safety, quality, and performance requirements before they are installed in their intended applications. Each valve must undergo rigorous testing and certification processes to obtain these approvals from recognized industry organizations.
Certifications may vary depending on the country or region but often include standards set by organizations such as the American Society of Mechanical Engineers (ASME), Underwriters Laboratories (UL), Factory Mutual (FM), Technical Inspection Association (TÜV), Canadian Standards Association (CSA), and ATEX in Europe for explosive atmospheres. Moreover, each industry might have additional regulatory bodies setting forth standards that need to be adhered to.
The presence of these certifications on solenoid valves signifies compliance with stringent safety regulations, attesting to their capability to safely control the flow of hazardous materials like fuel gas, natural gas, fuel oil, and propane. Selecting a valve with the proper approvals ensures legality as well as operator safety and operational reliability.
| Approval Bodies | Description | Recognized For |
|---|---|---|
| ASME (American Society of Mechanical Engineers) | Sets codes and standards for engineering practices mainly in North America. | Valve design standards |
| UL (Underwriters Laboratories) | Provides safety-related certification across global markets. | Safety testing |
| FM (Factory Mutual) | International insurance carrier providing approval for industrial equipment against loss prevention. | Loss prevention standards |
| TÜV (Technical Inspection Association) | German organization that validates the safety of products to protect humans and the environment. | Safety compliance |
| CSA (Canadian Standards Association) | Develops standards for public safety in Canada similar to UL in scope. | Public safety |
| ATEX | European directive defining equipment allowed in an environment with an explosive atmosphere. | Equipment safety in explosive atmospheres |
Degree of Protection
When discussing the degree of protection for fuel, oil, gas, and propane solenoid valves, it refers to the level of defense these devices provide against the ingress of solid objects, dust, accidental contact, and water. This is usually indicated by an IP (Ingress Protection) rating—a two-digit code where each digit reflects the extent of protection against solids and liquids respectively.
The first digit ranges from 0 to 6 and signifies the valve’s resistance to penetration by solid objects. For instance, a value of 0 means no special protection, while a value of 6 implies that the valve is entirely dust-tight. The second digit indicates the moisture protection level on a scale from 0 to 8, with 0 meaning no protection and higher values indicating increasing levels of waterproofing.
Selecting appropriate degrees of protection based on environmental conditions is critical in ensuring longevity and reliability. In environments prone to dust or potentially wet conditions such as outdoor installations or in industrial settings with high levels of particulates or moisture, opting for a higher IP rating ensures that solenoid valves operate flawlessly without being hampered by foreign elements.
Applications
Solenoid valves play a critical role in controlling the flow of fuel, oil, gas, and propane in various systems. Their applications are diverse and cover a broad range of industries. For instance, in the automotive industry, solenoid valves manage fuel injection in engines for improved efficiency and reduced emissions. They are also integral to heating systems where they regulate natural gas or oil flows to burners for consistent temperature control.
In industrial settings, solenoid valves control the release of fuels or gases during manufacturing processes—a pivotal task for safety and precision. These valves can be found facilitating operations within food production lines as well, where propane might be used for cooking or refrigeration systems require precise management of coolant gases.
The medical field also relies on these components; oxygen delivery systems in hospitals use solenoid valves to ensure a regulated supply to patients. Power generation is another area where these valves find significant application; they help control fuel inputs into generators that require constant attention to output and safety standards.
Safety-related applications are paramount—especially with flammable substances like natural gas and propane—where automatic shutoff capabilities of solenoid valves prevent leaks that could lead to fires or explosions.
Finally, residential uses cannot be overlooked. Home heating systems depend on solenoid valves to maintain comfortable environments while adhering to energy efficiency standards by regulating furnace operation.
This efficient automation provided by solenoid shut-off valves is essential across such a multitude of scenarios due to their reliability and ability for quick response under various conditions.
| Industry/Application | Use Case Description |
|---|---|
| Automotive | Managing fuel injection in engines |
| Heating Systems | Controlling gas/oil flow to burners |
| Industrial Manufacturing | Regulating release of fuels during processes |
| Food Production | Managing propane for cooking/refrigeration |
| Medical | Oxygen delivery system regulation |
| Power Generation | Controlling fuel input into generators |
| Safety Systems | Automatic shutoff capabilities to prevent leaks |
| Residential Heating | Regulating furnace operations for efficiency |
In conclusion
Solenoid valves play a crucial role in managing the flow of fuel, oil, gas, and propane by delivering precise control through an electromechanically operated valve designed for these specific applications.
In summary, efficient and reliable operation of systems utilizing fuel, oil, gas, or propane is heavily dependent on the proper functioning of specialized solenoid valves. To ensure safety and optimal performance in your applications, consider exploring our range of high-quality solenoid valves tailored to meet your exact needs. Connect with us today to find the perfect solution for controlling the flow in your critical systems.
