A hydraulic solenoid valve is an electromechanically operated valve that controls the flow of fluid within a hydraulic system. The device utilizes an electric coil to generate a magnetic field which causes the valve to open or close, thus regulating fluid movement.
Understanding how hydraulic solenoid valves function is crucial in systems where precise control of pressure and flow is essential, such as in industrial machinery and automotive braking systems. Discover the integral role these valves play and explore the technology behind their operation as we delve into the dynamic world of hydraulic control.

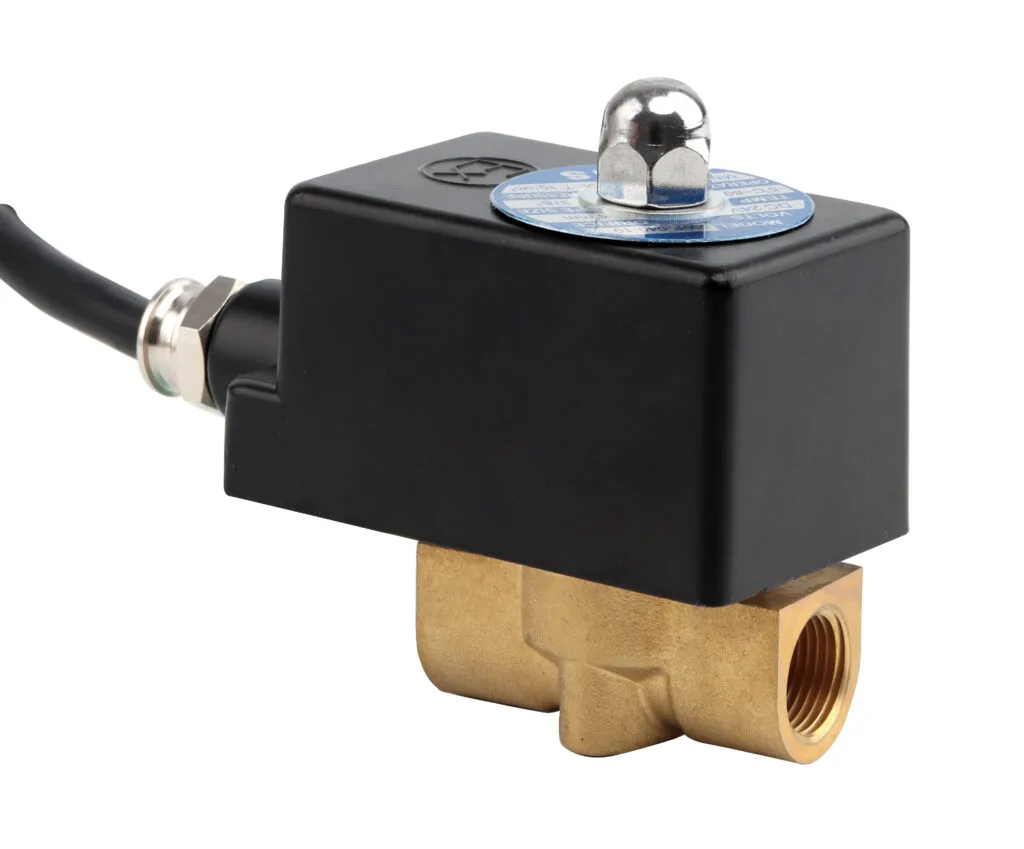

What is a Hydraulic Solenoid Valve
A hydraulic solenoid valve is an electromechanically operated device used to control the flow of hydraulic fluid in a system. It effectively converts electrical energy into mechanical motion, allowing for the precise and rapid control of fluid dynamics within various types of hydraulic equipment and systems. The valve typically consists of a solenoid, which is a coil of wire that becomes magnetized when electric current flows through it, and a movable plunger or armature contained within the solenoid’s magnetic field. When activated by an electrical signal, the magnetic field generated by the solenoid shifts the plunger, thus opening or closing the valve to either allow or obstruct the flow of hydraulic fluid.
These valves are integral components in modern machinery where precision and reliability are paramount. They are designed to handle high pressure and can range in size from small units used in mobile applications to larger valves for industrial environments. In essence, hydraulic solenoid valves bring together electronic controls with hydraulic power to achieve complex motions and tasks.

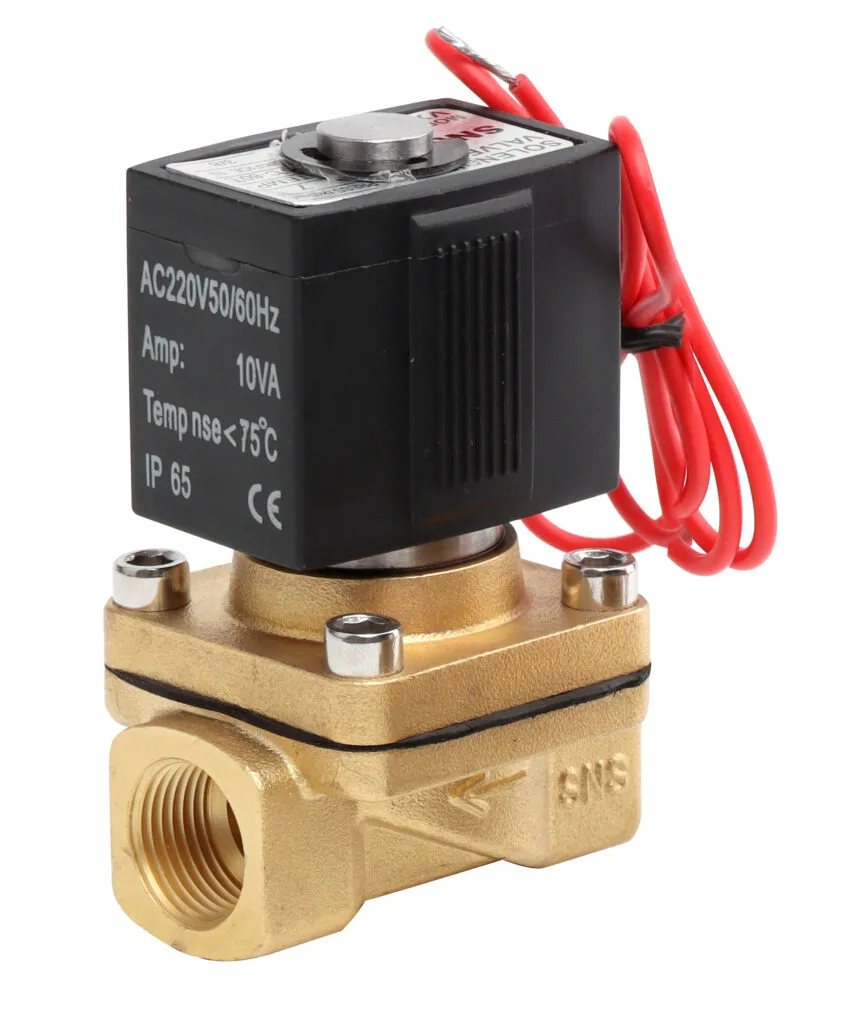

How does Hydraulic Solenoid Valve Work
It consists of a solenoid, which is an electric coil with a movable ferromagnetic core in its center, called the plunger or armature. When electrical current passes through the solenoid, it generates a magnetic field, causing the plunger to move. This movement either opens or closes the valve ports, allowing hydraulic fluid to pass through or blocking its flow.
The operation of a hydraulic solenoid valve is based on the principle of electromagnetism. In its resting state, when no current flows through the solenoid coil, spring pressure holds the valve in its default position (either open or closed). Upon energizing the solenoid coil with an electrical current, the generated electromagnetic force overcomes the spring pressure and moves the plunger. This action changes the positioning of internal components such as spools or poppets, resulting in change of state from open to closed or vice versa.
Hydraulic solenoid valves are often directly operated when power is applied to open or close them; however, larger valves may be pilot-operated where a small direct operated valve first operates another mechanically connected main valve.

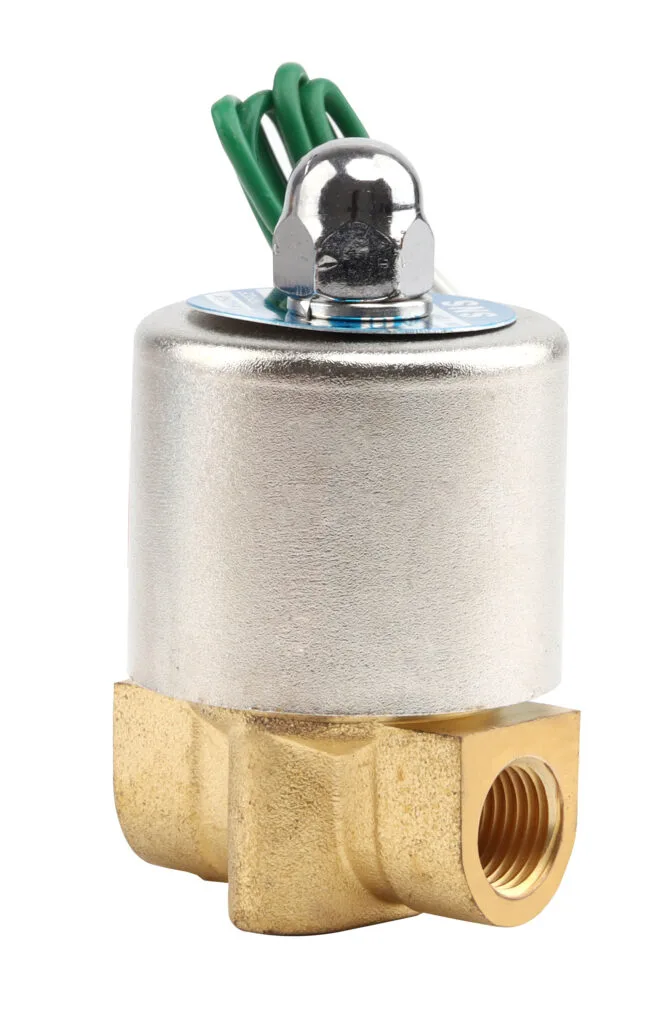

Design of Hydraulic Solenoid Valve
The design of a hydraulic solenoid valve is intricate and tailored for controlling fluid flow with precision. This type of valve integrates electrical and mechanical components to regulate the direction, pressure, and flow rate of hydraulic fluid within a system. Central to its design are the solenoids—electromagnetic coils that, when energized, generate a magnetic field capable of moving the valve’s plunger or armature. The interaction between the current’s intensity in the coil and the spring force determines the plunger’s position.
Within the solenoid valve, carefully machined passageways control the travel path of hydraulic fluid. The unit houses spools that slide to block or open these channels; their movement is dictated by the solenoid action resulting from electrical signals sent by a control system. Each variation in design caters to specific functional requirements – whether it be simple on/off tasks or complex directional control needed in various applications.
Materials for constructing hydraulic solenoid valves are selected based on properties like strength, durability, and resistance to corrosion. Commonly used materials include stainless steel, brass, and thermoplastics. Sealing components play an essential role as well; they must ensure leak-proof operation under high pressure while also accommodating varying temperatures.
Additionally, relieving structures such as notches or grooves may be incorporated into designs to manage pressure surges and prevent damage during abrupt shifts in flow. Focusing on precise tolerances is key in manufacturing these valves due to their tight-seal requirements expected for reliable performance.
| Feature | Description |
|---|---|
| Solenoids | Electromagnetic coils that move plunger/armature |
| Passageways | Control paths for hydraulic fluid |
| Spools | Slide within valve to regulate fluid flow |
| Materials | Stainless steel, brass, plastics (corrosion-resistant) |
| Seals | Ensure leak-proof operation under high pressure |
| Pressure Relief | Structures designed to manage pressure surges |
4/3-way valve
The 4/3-way hydraulic solenoid valve is a critical component often used in hydraulic systems requiring precise control over fluid direction and flow. The designation “4/3” indicates that the valve has four ports and three positions it can shift to. In its various configurations, each position connects different ports together while blocking others, allowing for the regulation of fluid direction through the system’s circuit.
Specifically, the core function of a 4/3-way valve consists of controlling the start, stop, and direction of fluid flow. This type of valve can be found in spring-centered or detented versions; in a spring-centered configuration, when de-energized, the valve returns to a central neutral position due to spring force. Conversely, a detented valve remains in its last selected position until an actuating force changes it again.
Users can choose valves with either manual overrides or without them, depending on whether manual control needs to be exerted in specific situations. The switching operation of such valves may either be direct-acting—with electrical signals directly influencing spool movement—or piloted—where a small control hydraulic flow shifts the spool within its housing.
Hydraulic solenoids fitted on these valves usually come in two types: wet-pin and dry-pin designs. Wet-pin solenoids are immersed in hydraulic fluid for cooling purposes and generally offer improved operational longevity under harsh conditions compared to dry-pin counterparts.
| Feature | Description |
|---|---|
| Ports | Four |
| Positions | Three |
| Flow Control | Directs start, stop, and direction of hydraulic flow |
| Configurations | Spring-centered or detented versions; with or without manual overrides |
| Actuation | Direct-acting (electrical) or piloted |
| Solenoids | Wet-pin (immersed) or dry-pin designs |
| Applications | Used in complex industrial motion-control systems |
4/2-way valve
A 4/2-way hydraulic solenoid valve is designed with four ports and two positions that it shifts between. It manages the direction of hydraulic fluid within a circuit by shifting its internal spool to either one of its two distinct positions. When energized, the solenoid moves the spool from its default position, redirecting the hydraulic fluid according to the predefined pathways plugged into each port.
Typically there are two ports connected to hydraulic lines (these can be labeled as A and B), one port connected to a pressure supply (labeled P), and finally, one port that serves as a return line for the fluid back to a reservoir (labeled T). The spool inside the valve interacts with these ports in such a way that when in one position, fluid might flow from P to A and B to T; whereas in the opposite position, it would direct flow from P to B and A to T.
The precise operation of such valves depends on their design specifications which contribute significantly in dictating their performance characteristics like flow rate capacity, operating pressure range, and response time. By utilizing an electrical control signal to actuate movement via the solenoid, operators achieve quick responses within systems requiring frequent direction changes or where remote control is advantageous.
| Design Feature | Description |
|---|---|
| Ports | 4 total: 2 working ports (A & B), 1 pressure supply port (P), 1 tank return port (T) |
| Positions | 2 distinct shifting positions |
| Spool Operation | Actuated by an electromagnet known as a solenoid |
| Functionality | Directs hydraulic fluid between different paths depending on spool position |
| Application Suitability | Systems needing frequent direction changes or remote-controlled operations |
| Performance Specifications | Dictated by elements such as flow rate capacity, operating pressure range, and response time |

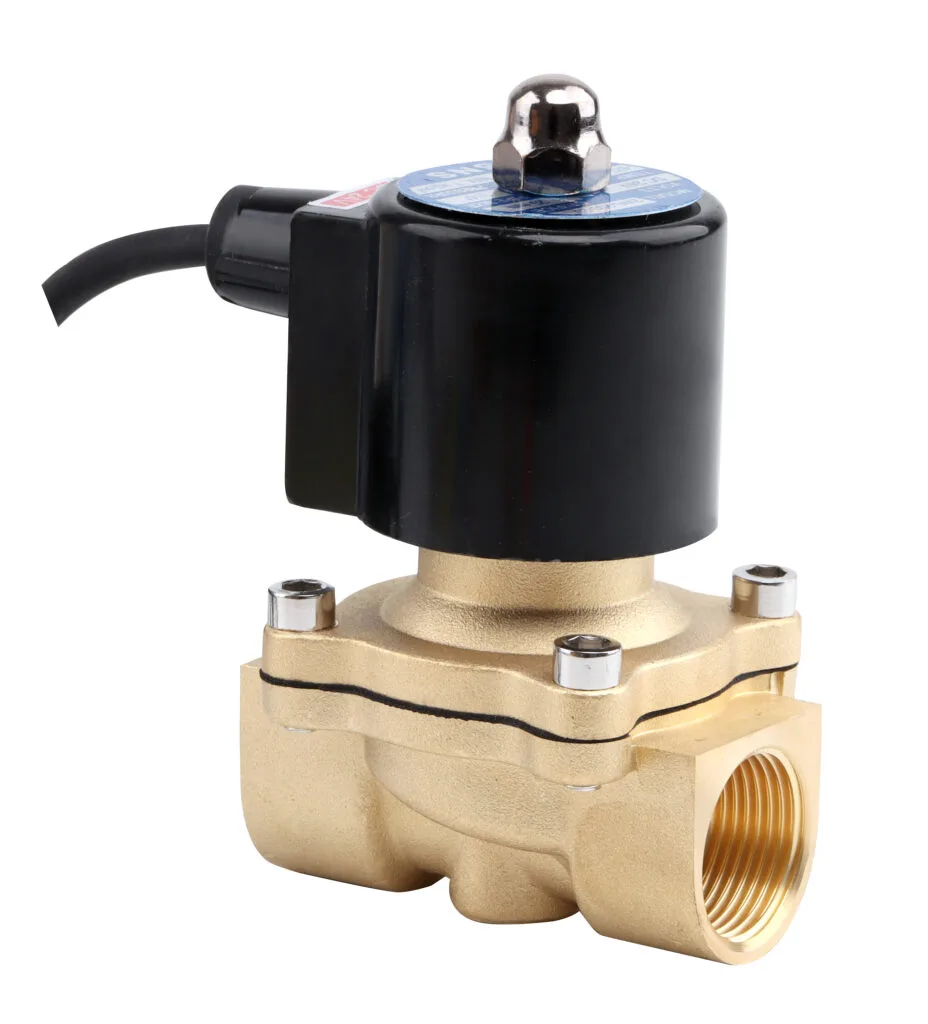

Design Options of Hydraulic Solenoid Valve
The design options of hydraulic solenoid valves are critical for ensuring appropriate matching to the intended application. Diverse configurations offer varied flow and control capabilities and can be selected based on specific operational requirements. One fundamental aspect is the valve’s construction material, which must be chosen considering fluid compatibility and environmental factors to prevent corrosion or degradation.
Actuation methods are another area with several possibilities, ranging from direct-acting to pilot-operated mechanisms. Direct-acting valves are suitable for low flow rates, while pilot-operated options can handle larger flows due to their two-stage operation where a pilot valve controls the main valve. Electrical power considerations include voltage and type (AC or DC), as improper selection can result in operational issues or premature failure.
Internally, spool designs greatly affect performance, with precision-ground spools providing reliable sealing and longevity in high-performance applications. Seal materials should also align with the fluid type and temperature range—the integrity of seals is pivotal to prevent leaks.
Fail-safe positions come into play for safety-critical scenarios. Spring-centered models return the valve spool to a neutral position if power is lost, while detent mechanisms maintain position until actively shifted—advantageous in maintaining system states without constant power supply.
When choosing a hydraulic solenoid valve design, consider:
- Construction material compatibility with the hydraulic fluid
- Appropriate actuation method (direct-acting vs pilot-operated)
- Adequate electrical specifications (voltage, AC/DC)
- Precision of spool design for flow control
- Seal integrity suited to fluid and temperature conditions
- Safety features like fail-safe positions or detent mechanisms
Detent Mechanism
The detent mechanism in a hydraulic solenoid valve is an integral feature enabling the valve to maintain its position without continuous power applied to the solenoid. This mechanical retention system typically uses a spring-loaded ball or a pin that fits into a detent notch on the spool or disc within the valve body, effectively ‘locking’ it into place until an electromagnetic force is reapplied to move the spool or disc to another position.
This function is particularly beneficial in situations where power savings are crucial, as well as in applications where the valve must keep its last commanded position during power loss scenarios. The presence of a detent mechanism adds fail-safe capabilities, ensuring that systems remain either open or closed and continue functioning at their last set state despite any inadvertent power interruptions.
One common application includes mobile hydraulics where maintaining control positions is vital for safety and operational performance. The utilization of such mechanisms demands careful consideration regarding the forces required to overcome the detents; these forces should be neither too weak, causing unwanted movement due to system vibrations, nor too strong that they prevent smooth transitions between positions.
Hydraulic Solenoid Valve Applications
Hydraulic solenoid valves are instrumental components across various industries due to their ability to control fluid flow with precision. They find paramount use in mobile hydraulics, such as in excavators, forklifts, and loaders, where they actuate hydraulic cylinders for smooth and accurate operation of heavy machinery. In the realm of industrial equipment, these valves regulate processes in manufacturing lines, including CNC machines which demand precise control over cutting tools through hydraulic actuators.
Furthermore, the automotive sector incorporates hydraulic solenoid valves within automatic transmissions to manage gear shifts seamlessly and within anti-lock braking systems (ABS) to maintain vehicle control during sudden stops. In plastic injection molding machines, the valves are pivotal for controlling the precise injection of molten plastic, determining product quality.
The aerospace industry benefits greatly from these valves as well; they are utilized to adjust wing flaps and landing gear smoothly and reliably. In addition to these applications, hydraulic solenoid valves play a crucial role in controlling intricate movements in robotics and automated production systems where repeatability and precision are key.
These applications emphasize not only the versatility of hydraulic solenoid valves but also their integral role in a myriad of operational contexts that require dependable and precise fluid power control.
| Industry/Application | Use of Hydraulic Solenoid Valves |
|---|---|
| Mobile Hydraulics | Actuation of cylinders in construction vehicles (e.g., excavators). |
| Industrial Equipment | Regulation of manufacturing processes (e.g., CNC machines). |
| Automotive | Gear shift management in automatic transmissions; ABS systems. |
| Plastic Injection Molding | Control of molten plastic injection for precise product formation. |
| Aerospace | Adjustment controls for wing flaps and landing gear mechanisms. |
| Robotics & Automation | Precise control over robotic movements and automated production lines. |
Points of Attention and Selection Criteria
When selecting a hydraulic solenoid valve, there are multiple points of attention and criteria that need to be examined to ensure appropriate functionality for the specific application. The operational environment, including temperature range and fluid type, dictates the material compatibility for all valve components. Voltage and power requirements must align with available supply while meeting operational energy efficiency standards. Flow rate, determined by port size and orifice diameter, needs to be adequate for system demands.
Pressure ratings should exceed system maximums to prevent premature failure. Response time is crucial in dynamic systems where rapid actuation is needed. The life expectancy of the valve should be suitable for the projected use-case scenario ensuring long-term reliability. Certifications may also be required depending on industry standards or regulatory compliance needs.
Ensuring proper mounting orientation, compatible connection interfaces, and ease of maintenance are practical considerations. Finally, cost-effectiveness without compromising on quality is vital; an initial lower cost could lead to higher expenses in downtime and replacements if the valve does not meet performance standards.
| Criteria | Description |
|---|---|
| Material Compatibility | Should withstand the environmental conditions and fluid type |
| Voltage & Power Requirements | Must match supply levels; consider energy efficiency |
| Flow Rate Specifications | Adequate for system demands; determined by port size and orifice |
| Pressure Ratings | Must exceed maximum system pressure to avoid failure |
| Response Time | Important for systems requiring rapid actuation |
| Life Expectancy | Should match the intended duration of use without frequent replacement |
| Certification & Standards Compliance | May be necessary based on industry regulations |
| Mounting & Interface Compatibility | Should fit into existing system configurations easily |
| Maintenance Considerations | Easy accessibility can reduce downtime during service intervals |
| Cost-Effectiveness | Balance between upfront costs and long-term viability |
In conclusion
In conclusion, a hydraulic solenoid valve is an electromechanically-operated valve that is crucial for controlling the flow of hydraulic fluid in various industrial and mechanical systems.
