Pressure Switch Excellence by SNS Pneumatic
In modern industrial automation and pneumatic control systems, the pressure switch plays a crucial role. Acting as both a “guardian” for equipment safety and an “intelligent manager” for production efficiency, pressure switches are indispensable components.
The SNS Pneumatic QPM/QPF series pressure switch stands out for its high accuracy, reliability, and broad applicability, earning the trust of enterprises worldwide.
This article provides a detailed analysis of the technical features, applications, purchasing considerations, and FAQs, helping you make informed purchasing decisions.
What Is a Pressure Switch?
Definition
A pressure switch is an automated control device used to monitor the pressure of gas or liquid in a system.
When the pressure reaches a preset threshold, the switch automatically triggers an electrical circuit, enabling equipment to start, stop, or send out an alarm.
Its primary function is to ensure equipment operates within safe pressure limits, preventing damage or accidents caused by excessive or insufficient pressure.
How It Works
Inside a pressure switch, an elastic element (such as a diaphragm or bellows) reacts to system pressure.
As the element deforms, it activates a microswitch, opening or closing the circuit. Users can adjust the preset pressure value to control equipment operation flexibly.

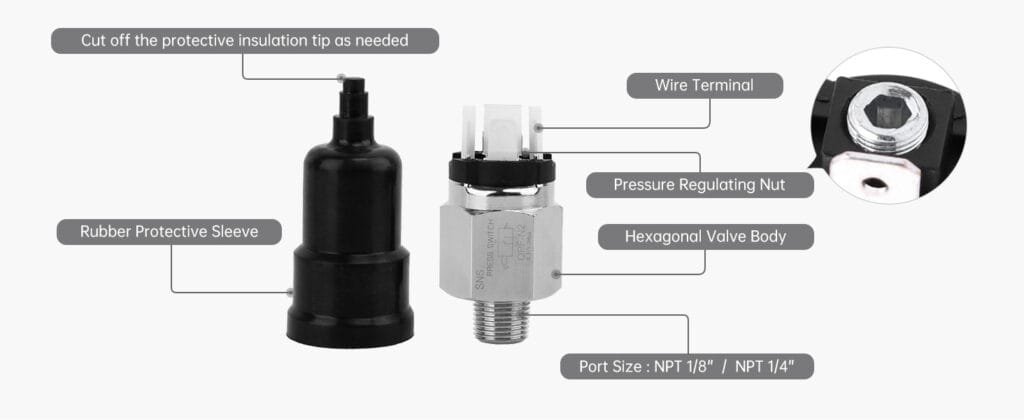

SNS Pneumatic QPM/QPF Series Pressure Switch: Product Details
- Pressure Range: Adjustable from 15 to 145 psi (0.1 to 1.0 MPa), suitable for various industrial environments.
- Voltage Compatibility: Supports AC110V, AC220V, DC12V, and DC24V, compatible with most electrical systems.
- Protection Rating: With standard protective accessories, achieves IP54 protection, effectively resisting dust and moisture for use in challenging industrial conditions.
- Long Service Life: Rated for up to 1,000,000 cycles, ensuring long-term reliability.

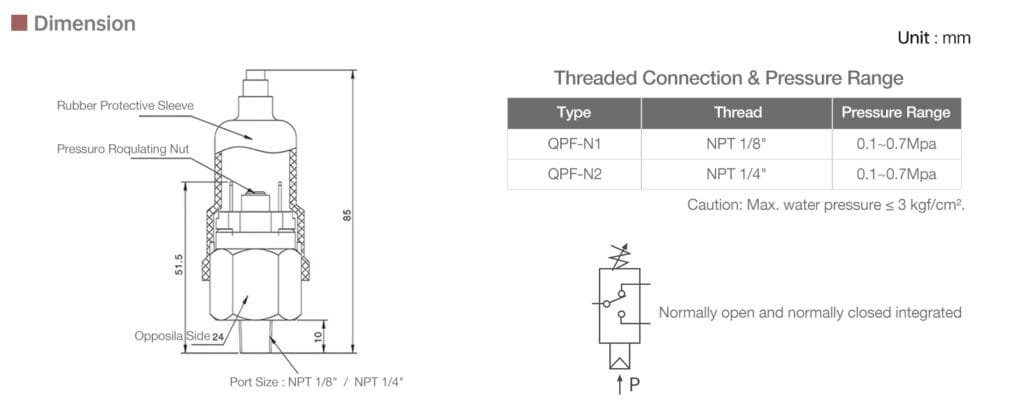

- Easy Installation: Standard PT1/8 threaded connection, with optional custom ports for flexible installation and maintenance.
- Materials & Craftsmanship: Made from high-quality metals and engineering plastics, rigorously tested and aged to withstand harsh environments.
Applications
- Air Compressor Control: Monitors compressed air pressure, preventing equipment damage from overpressure or insufficient pressure.
- Refrigeration Equipment: Serves as a high/low pressure protection device, ensuring safe operation of refrigeration systems.
- Automated Production Lines: Enables automatic control of pneumatic components, improving production efficiency.
- Industrial Machinery: Suitable for any industrial scenario requiring pressure monitoring and automatic control, such as packaging machines, injection molding machines, and machine tools.
Five Key Considerations When Choosing a Pressure Switch
- Match the Pressure Range: Select a model that covers your equipment’s operating pressure to ensure accurate response.
- Voltage/Current Compatibility: Confirm the pressure switch’s voltage matches your electrical system.
- Protection Rating: Choose an appropriate protection level (e.g., IP54 for general industrial use, IP65 for damp or dusty environments).
- Connection Type: Select a threaded or flanged connection that matches your equipment for easy installation.
- Brand & After-Sales Support: Opt for reputable brands like SNS Pneumatic to benefit from professional technical support and service.
SNS Pneumatic Brand Advantages
- Years of Industry Experience: SNS Pneumatic specializes in pneumatic component R&D and manufacturing, with extensive technical expertise.
- Strict Quality Control: All products undergo rigorous testing and aging processes to ensure quality.
- Global Service Network: Offers professional technical support and after-sales service to solve customer challenges.
- Custom Solutions: Provides customized products and solutions tailored to special application requirements.
How to Contact Us
If you are interested in the SNS Pneumatic QPM/QPF series pressure switch or have technical questions, please feel free to contact us.
Our expert team will provide one-on-one technical support, help you choose the most suitable product, and offer customized solutions.
Frequently Asked Questions
The pressure switch does not activate after installation. What could be the reason?

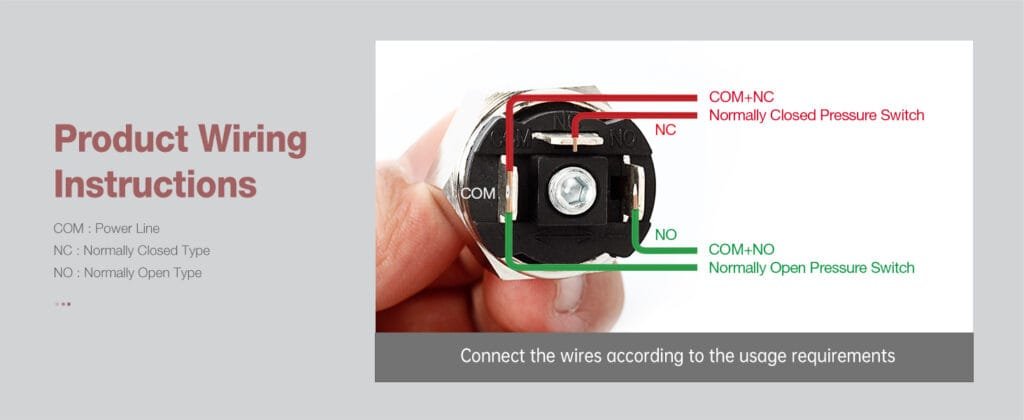

This may be due to incorrect pressure settings or wiring errors. Check the settings and wiring as per the product manual.
What is the lifespan of a pressure switch?
The SNS Pneumatic QPM/QPF series is rated for up to 1,000,000 cycles, with a lifespan of several years under normal use.
How do I adjust the pressure switch’s setpoint?
Rotate the pressure adjustment knob while referencing a pressure gauge for calibration. Refer to the product manual for detailed instructions.
Does the pressure switch require regular maintenance?
It is recommended to periodically check the switch’s operation and wiring. In harsh environments, shorten the maintenance interval as needed.
