This Cylinder was the latest invention high quality .We devoted our selves to air pneumatic many years,covering most of Europe and the Americas market.We are expecting become your long-term partner in china.

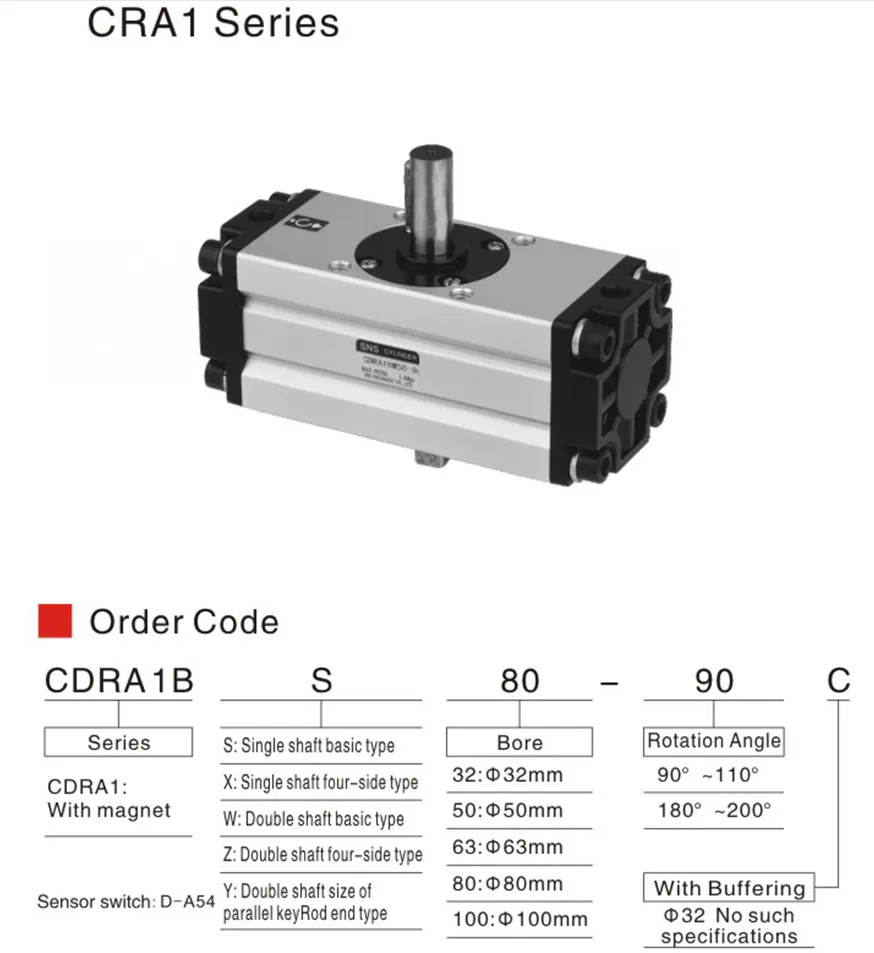

CRA1 standard cylinder adopts aluminum alloy hard oxidation treatment.
Good friction, no skidding, no deformation, ensure the accuracy of working movement
The piston seal adopts special bidirectional sealing structure with compact size and oil storage function.
High quality Cylinder, for air
Working temperature range:5 ℃~60 ℃
We strive to be perfect in every detail.
| Bore Size(mm) | 32 | 50 | 63 | 80 | 100 | 125 | |
| Working Medium | Cleaned Air | ||||||
| Acting Mode | Double acting | ||||||
| Max.Working Pressure | 1Mpa | ||||||
| Min.Working Pressure | 0.1Mpa | ||||||
| Fluid Temperature | 0-60℃ | ||||||
| Gear Gap | Within 1
| ||||||
