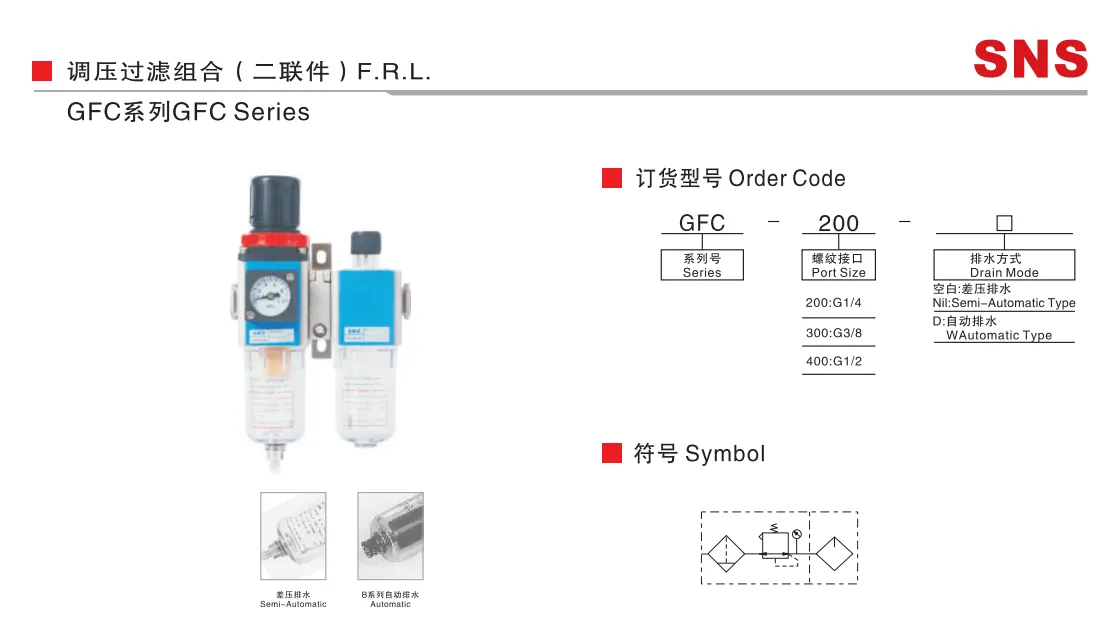

SNS GFC Series F.R.L air source treatment combination filter regulator lubricator

This Air Filter Pressure Regulator With Lubricator(FRL) was the latest invention high quality .We devoted our selves to air pneumatic many years,covering most of Europe and the Americas market.We are expecting become your long-term partner in china.
1,The working medium of gas source processor should use clean and dry compressed air,and the air in the piping should be fully blown to prevent impurities from bringing into the system and causing bad action of cylinders and valves. The fuel mist in the piping system should be lubricated.
2,After the air source processor maintains the normal operation of the system, it is necessary to check the working conditions of air filters and oil mists regularly, and to discharge and refuel water in time.
3,Often check the operation of various pneumatic components, check whether the fastening bolts are loose? ls there any damage or leakage in the seal of the element?
4,When maintaining, it is necessary to shut down the gas source beforehand and empty the compressed air in the pipeline system before carrying out maintenance work
5,Components must be cleaned when repairing and reassembling, and impurities must not be brought into the system.
Compressed air filter regulator lubricator three units combo with pressure gauge and bracket
Ambient Temperature:-20~70℃
Brass filter element with 5 micron filter standard
It’s easy to operate and has good performance in air source treatment
