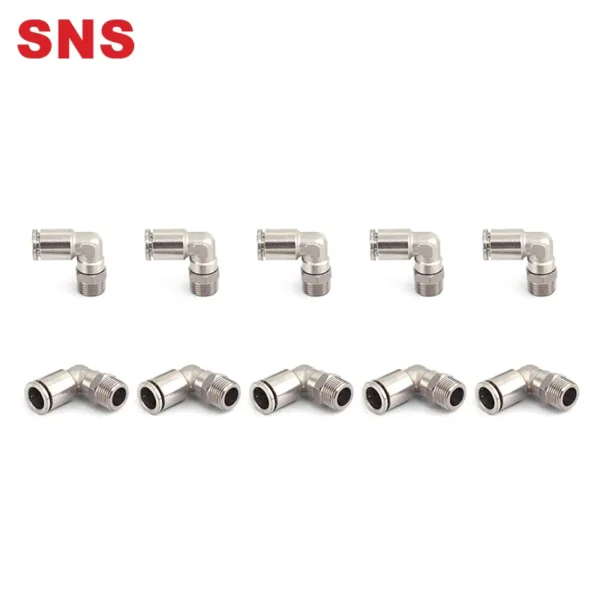

This Male Elbow Brass Fitting was the latest invention high quality .It was Made of high-quality plastics and nickel-plated copper for durable use .We devoted our selves to air pneumatic many years,covering most of Europe and the Americas market.We are expecting become your long-term partner in china.
Plastic material, keep strength and light weight at the same time.The elastic card spring is inserted into the tracheal sleeve to complete the connection.When disconnected, the tracheal sleeve will be pressed. •Made of high-quality plastics and nickel-plated copper for durable use
• Type: Quick Connect Fitting Connector
• Advantages: Easy installation and disassembly, good sealing performance
• Fluid type: air, vacuum
• Operating Pressure: 0-0.9Mpa
• Proof pressure:1.32Mpa
• Working Temperature: 0-60°C
• Applicable pipe: PU/PA/PE/PVC
| ■Feature : |
| We strive to be perfect in every detail. |
| Nickel-plated brass material makes fittings light and compact, metal rivet nut realizes |
| longer service life. The sleeve with various sizes for option is very easy to connect |
| and disconnect. Good sealing performance ensures high quality. |
| Note : |
| 1. NPT, PT, G thread are optional. |
| 2. Special type of fttings also can be customized. |
| Model | d | P | D | S | L1 | L2 | L3 |
| JPL4-M5 | 4 | M5 | 10 | 10 | 18 | 21 | 4.5 |
| JPL4-01 | 4 | PT1/8 | 10 | 10 | 18 | 21.5 | 8 |
| JPL4-02 | 4 | PT1/4 | 10 | 14 | 18 | 23.5 | 10 |
| JPL6-M5 | 6 | M5 | 12.5 | 10 | 23.5 | 20.5 | 4.5 |
| JPL6-01 | 6 | PT1/8 | 12.5 | 12 | 23.5 | 21.5 | 8 |
| JPL6-02 | 6 | PT1/4 | 12.5 | 14 | 23.5 | 23.5 | 10 |
| JPL6-03 | 6 | PT3/8 | 12.5 | 17 | 23.5 | 23.5 | 10 |
| JPL6-04 | 6 | PT1/2 | 12.5 | 21 | 23.5 | 25 | 11.5 |
| JPL8-01 | 8 | PT1/8 | 15 | 12 | 26 | 23.5 | 8 |
| JPL8-02 | 8 | PT1/4 | 15 | 14 | 26 | 25.5 | 10 |
| JPL8-03 | 8 | PT3/8 | 15 | 17 | 26 | 25.5 | 10 |
| JPL8-04 | 8 | PT1/2 | 15 | 21 | 26 | 27 | 11.5 |
| JPL10-01 | 10 | PT1/8 | 17 | 14 | 28 | 23.5 | 8 |
| JPL10-02 | 10 | PT1/4 | 17 | 14 | 28 | 25.5 | 10 |
| JPL10-03 | 10 | PT3/8 | 17 | 17 | 28 | 25.5 | 10 |
| JPL10-04 | 10 | PT1/2 | 17 | 21 | 28 | 27 | 11.5 |
| JPL12-01 | 12 | PT1/8 | 19 | 17 | 30.5 | 26.5 | 8 |
| JPL12-02 | 12 | PT1/4 | 19 | 17 | 30.5 | 26.5 | 10 |
| JPL12-03 | 12 | PT3/8 | 19 | 17 | 30.5 | 26.5 | 10 |
| JPL12-04 | 12 | PT1/2 | 19 | 21 | 30.5 | 28 | 11.5 |
