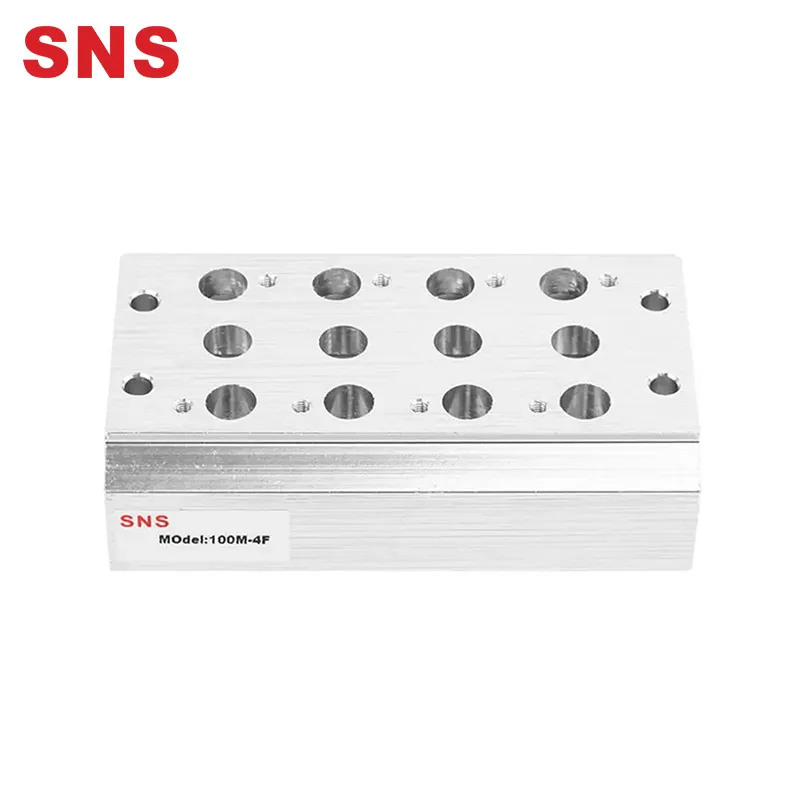

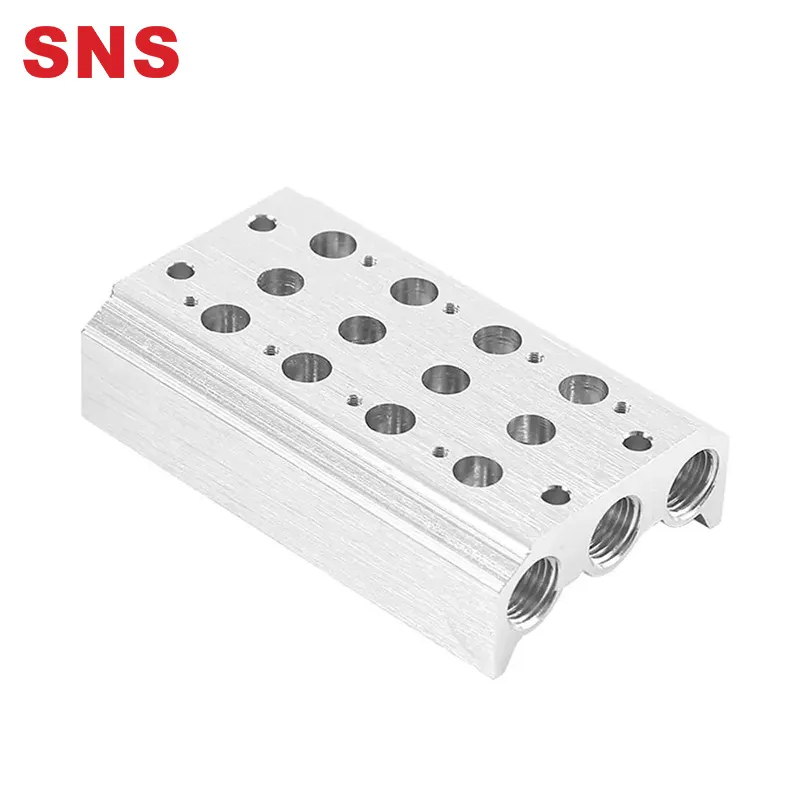

This Manifold was the latest invention high quality .We devoted our selves to air pneumatic many years,covering most of Europe and the Americas market.We are expecting become your long-term partner in china.

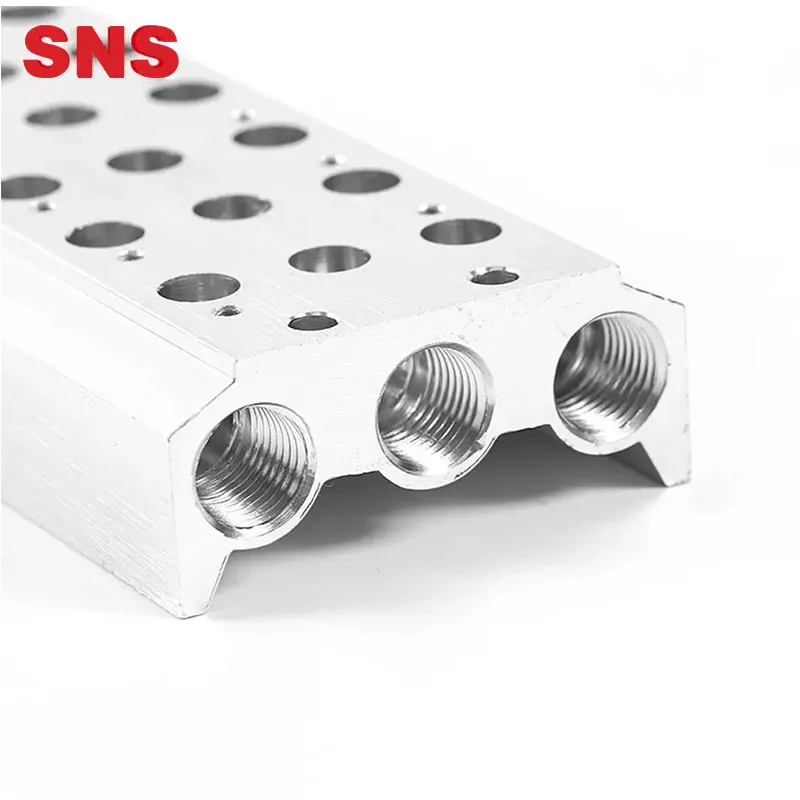

Bring multiple fluid channels together

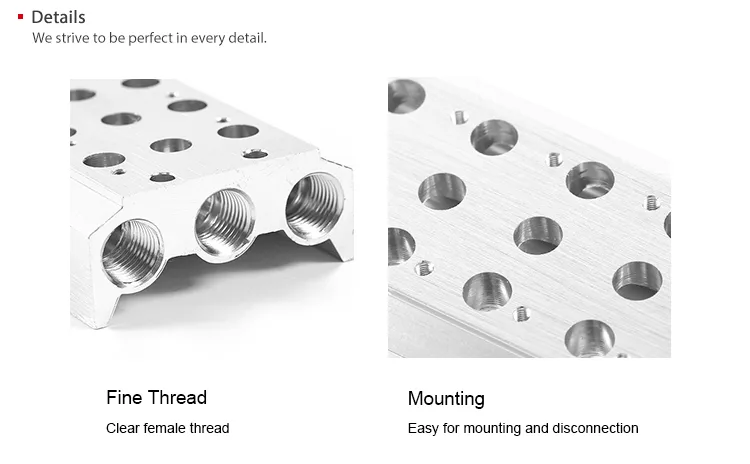

Strict selection of each part including the material and other spare parts, fine processing of thread and coil fulfill the high quality of solenoid valve.
We strive to be perfect in every detail.

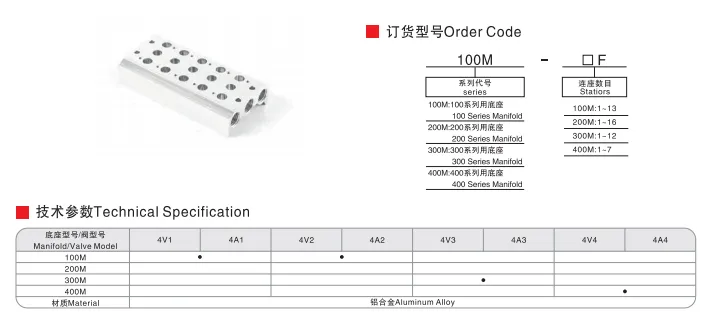

| Model | A | B | C | E | F | G2 | H | I | J | K |
| 100M-F | 58 | 43.2 | 20 | 42 | 18.3 | 19 | 5 | 9.9 | 0.8 | 139.4 |
| 200M-F | 61 | 50.7 | 21 | 4.3 | 22.4 | 23 | 6 | 11.8 | 1.2 | 170 |
| 300M-F | 75 | 64.8 | 26 | 4.5 | 27.3 | 27 | 6 | 13.4 | 2.5 | 188.8 |
| 400M-F | 104 | 94.5 | 32 | 4.5 | 34.3 | 31.5 | 7 | 18.4 | 5 | 221.8 |
| L | |||||||||||||||
| 1F | 2F | 3F | 4F | 5F | 6F | 7F | 8F | 9F | 10F | 11F | 12F | 13F | 14F | 15F | 16F |
| 38 | 57 | 76 | 95 | 114 | 133 | 152 | 171 | 190 | 209 | 228 | 247 | 266 | 285 | 304 | 323 |
| 46 | 69 | 92 | 115 | 138 | 161 | 184 | 207 | 230 | 253 | 276 | 299 | 322 | 345 | 368 | 391 |
| 54 | 82 | 110 | 138 | 166 | 194 | 222 | 250 | 278 | 306 | 334 | 362 | 390 | 418 | 446 | 474 |
| 71 | 98 | 133 | 168 | 203 | 128 | 273 | 308 | 343 | 378 | 416 | 448 | 483 | 518 | 553 | 588 |
| Model | M | P | |||||||||||||||
| 1F | 2F | 3F | 4F | 5F | 6F | 7F | 8F | 9F | 10F | 11F | 12F | 13F | 14F | 15F | 16F | ||
| 100M-F | 154.5 | 28 | 47 | 66 | 85 | 104 | 123 | 142 | 161 | 180 | 199 | 218 | 237 | 256 | 275 | 294 | 313 |
| 200M-F | 189 | 34 | 57 | 80 | 103 | 126 | 149 | 172 | 195 | 218 | 241 | 264 | 287 | 310 | 333 | 356 | 379 |
| 300M-F | 208 | 42 | 70 | 98 | 126 | 154 | 182 | 210 | 238 | 266 | 294 | 322 | 350 | 378 | 406 | 434 | 462 |
| 400M-F | 243 | 57 | 84 | 119 | 154 | 189 | 224 | 259 | 294 | 239 | 264 | 399 | 434 | 469 | 504 | 539 | 574 |
| Q | R | S | T | U | V | W | X | Y |
| PT1/4 | 40 | 30 | 29 | 14 | 9 | 78.5 | 25 | 27 |
| PT1/4 | 43 | 32 | 30.5 | 14.5 | 9 | 92.5 | 26 | 35 |
| PT3/8 | 53 | 48 | 37.5 | 13.5 | 11 | 99 | 30 | 40 |
| PT1/2 | 68 | 67 | 52 | 18.5 | 18 | 112 | 38 | 50 |
