This Air Filter Regulator was the latest invention high quality .We devoted our selves to air pneumatic many years,covering most of Europe and the Americas market.We are expecting become your long-term partner in china.

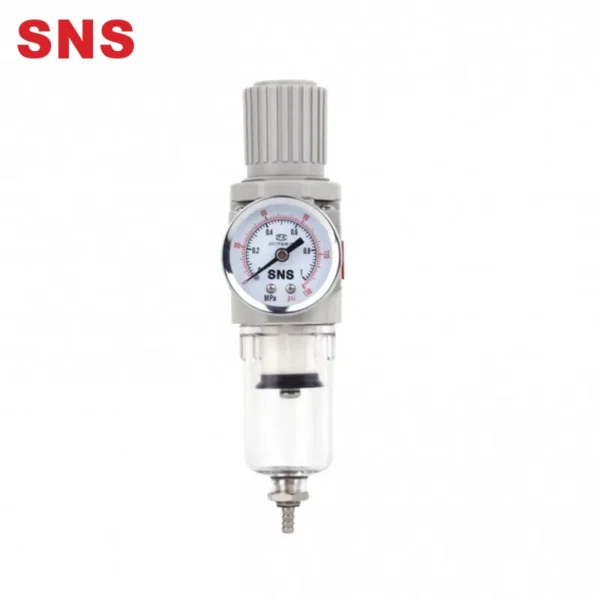

SAW Series air filter regulator has good performance in filtration and accurate pressure regulation. Good sealing performance guarantees high quality and no leakage. Due to standard modular design, it can be freely separated or combined.
Range of Regulation:0.05-0.85Mpa
Temperature Range: 5~60 ℃(41-140 ℉)
SAW Series air filter regulator combines a filter and regulator into one unit, it’s more compact and with smaller mounting space
It has good performance in air filtration and pressure regulation

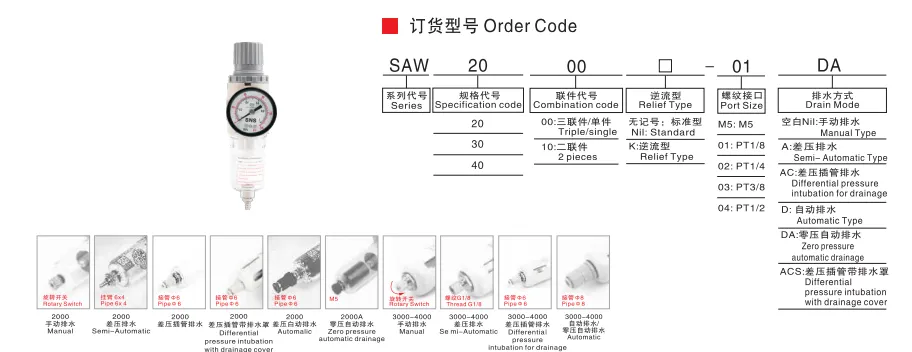

| Model | SAW2000-01 | SAW2000-02 | SAW3000-02 | SAW3000-03 | SAW4000-03 | SAW4000-04 |
| Port Size | PT1/8 | PT1/4 | PT1/4 | PT3/8 | PT3/8 | PT1/2 |
| Pressure Gange Port Size | PT1/8 | PT1/8 | PT1/8 | PT1/8 | PT1/8 | PT1/8 |
| Rated Flow(L/Min) | 550 | 550 | 2000 | 2000 | 4000 | 4000 |
| Working Media | Compressed Air | |||||
| Proof Pressure | 1.0Mpa | |||||
| Range of Regulation | 0.05~0.85Mpa | |||||
| Ambient Temperature | 5~60℃ | |||||
| Filter Precision | 40μm(Normal) or 5μm(Customized) | |||||
| Body material | Aluminum Alloy | |||||
| Bracket(one) | B240 | B340 | S440 | |||
| Pressure Gange | Y40-1 | Square pressure gauge | ||||
| Body material | Aluminum Alloy | |||||
| Bowl material | PC | |||||
| Cup cover | SAW2000:WITHOUT | SAW3000~SAW4000:WITH(Steel) | ||||
| Model | Port Size | A | B | C | D | E | F | G | H | J | K | L | M | N | P |
| SAW2000 | PT1/8,PT1/4 | 40 | 163 | 64 | 40 | 47 | 30 | 25 | 42 | 5.5 | 8 | 42 | 1.6 | 33.5 | 40 |
| SAW3000 | PT1/4,PT3/8 | 53 | 229.5 | 83.5 | 53 | 29 | 41 | 40 | 50 | 6.5 | 8 | 53 | 2.5 | 42.5 | 53 |
| SAW4000 | PT3/8,PT1/2 | 60 | 261.7 | 95 | 60 | 32.5 | 50 | 42.5 | 51.5 | 8.5 | 10.5 | 60 | 2.5 | 52.5 | 60 |
