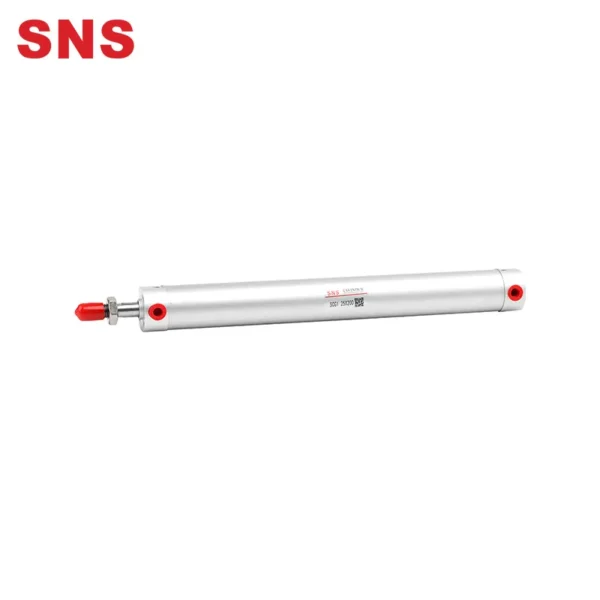

SNS SCG1 Series light duty type pneumatic standard air cylinder

SNS SCG1 Series light duty type pneumatic standard air cylinder

This Cylinder was the latest invention high quality .We devoted our selves to air pneumatic many years,covering most of Europe and the Americas market.We are expecting become your long-term partner in china.
Inquire Now
Get Catalog

Product Details

This Cylinder was the latest invention high quality .We devoted our selves to air pneumatic many years,covering most of Europe and the Americas market.We are expecting become your long-term partner in china.
SCG1 standard cylinder adopts aluminum alloy hard oxidation treatment.
Good friction, no skidding, no deformation, ensure the accuracy of working movement
The piston seal adopts special bidirectional sealing structure with compact size and oil storage function.
High quality Cylinder, for air
Working temperature range: 5 ℃~60 ℃
We strive to be perfect in every detail.

Bore Size(mm) 20 25 32 40 50 63 80 100
Working Media Air
Acting Mode Double acting
Withstand Test Pressure 1.5MPa(15kgf/cm²)
Max.Working Pressure 0.99MPa(9.9kgf/cm²)
Min.Working Pressure 0.05MPa(0.5kgf/cm²)
Fluid Temperature 5-60℃
Piston Speed 50~1000mm/s 50~700mm/s
Buffering Rubber buffer (standard), air buffer (Option
Stroke Tolerance(mm) ~100:0 +1.4 ~100: 0 +1.4
~1200:0 +1.4 ~1500:0 +1.4
Lubrication If oil required, please use Turbine No. 1 oil ISO VG32.
Port Size RC(PT) 44934 44934 44934 44934 44930 44930 44993 44928
Bore Size (mm) Stroke range Effective A □C φD φE F G GA GB φI J K KA MM NA P S TA TB TC H ZZ
(mm) Thread
Length
20 ~200 15.5 20 14 8 12 2 16 8 8 26 M4X0.7 Depth7 4 6 M8X1.25 24 *1/8 69 11 11 M5X0.8 35 106
25 ~300 19.5 22 16.5 10 14 2 16 8 8 31 M5X0.8 Depth 7.5 5 8 M10X1.25 29 *1/8 69 11 11 M6X0.75 40 111
32 ~300 19.5 22 20 12 18 2 16. 5 8 8 38 M5X0.8 Depth8 5.5 10 M10X1.25 36 1’8 71 11 10 M8X1.0 40 113
40 ~300 27 30 26 16 25 2 20 10 10 47 M6X1 Depth 12 6 14 M14X1.5 44 44934 78 12 10 M10X1.25 50 130
50 ~300 32 35 32 20 30 2 23 14 13 58 M8X1.25 Depth 16 7 18 M18X1.5 55 44930 90 13 12 M12X1.25 58 150
63 ~300 32 35 38 20 32 2 23 14 13 72 M10X1.5 Depth 16 7 18 M18X1.5 69 44930 90 13 12 M14X1.5 58 150
80 ~300 37 40 50 25 40 3 – 20 20 89 M10X1.5 Depth 22 11 22 M22X1.5 80 44993 108 –  –  – 71 182
100 -300 37 40 60 30 50 3 – 20 20 110 M12X1.75 Depth 2.2 11 26 M22X1.5 108 44928 108 – – – 71 182
