This Cylinder was the latest invention high quality .We devoted our selves to air pneumatic many years,covering most of Europe and the Americas market.We are expecting become your long-term partner in china.

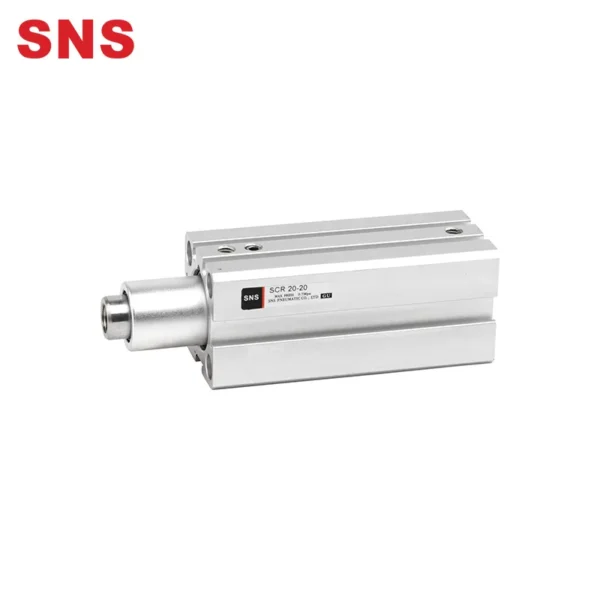

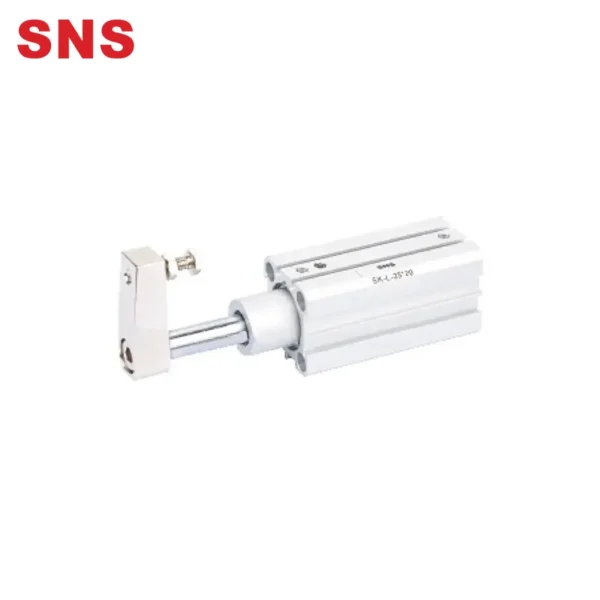

SCR standard cylinder adopts aluminum alloy hard oxidation treatment.
Good friction, no skidding, no deformation, ensure the accuracy of working movement
The piston seal adopts special bidirectional sealing structure with compact size and oil storage function.
High quality Cylinder, for air
Working temperature range: 0 ℃~60 ℃
We strive to be perfect in every detail.

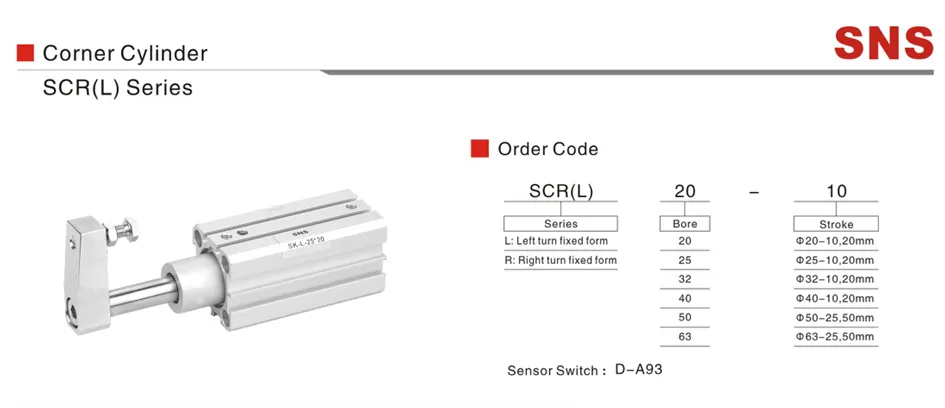

| Project | Bore Size(mm) | 20 | 25 | 32 | 40 | 50 | 63 |
| Working Type | Double acting | ||||||
| Fluid | Air | ||||||
| Pressure Range Kgf/cm(Kpa) | 1.5-9.5(150-950) | ||||||
| Temperature | 0-60 | ||||||
| Working Speed | 30-500 | ||||||
| Rotary Stroke | 10 | 15 | 19 | ||||
| Down Stroke | 10,20 | 10,20 | 25,50 | ||||
| Rotation Angle | 90°±10° | ||||||
| Direction Of Rotation | Turn left (from right to left) -L; turn right (from left to right) -R | ||||||
| Buffering | Rubber Cushion | ||||||
| Lubrication | Freely Supply | ||||||
| Port size | M5X0.8 | G1/8 | G1/4 | ||||
| Magnet device | Comes with a magnet | ||||||

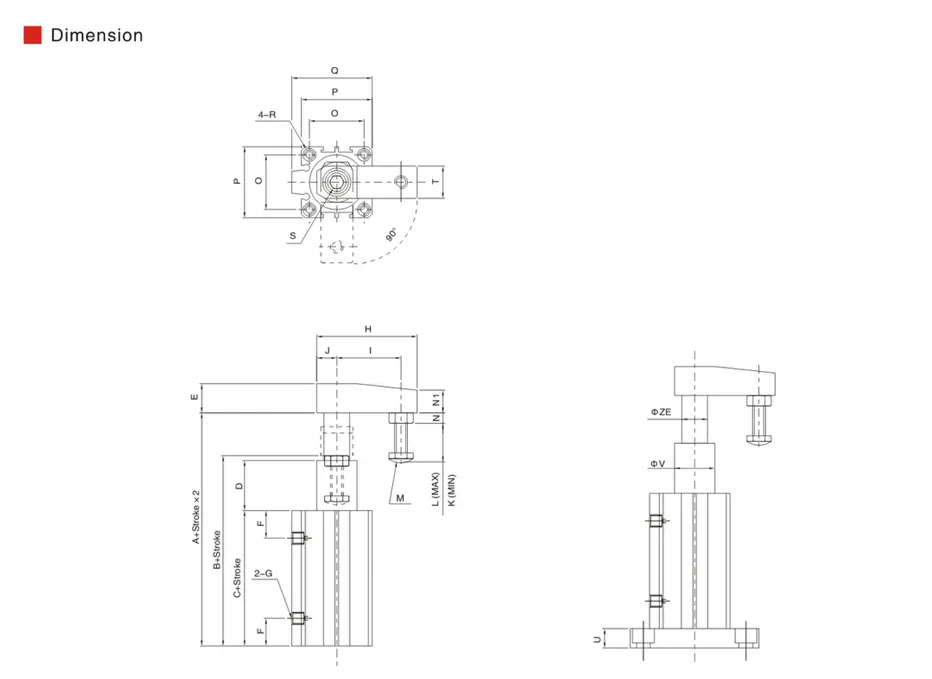

| Bore Size(mm) | A | B | C | D | E | F | G | H | I | J | K | L | M |
| 20 | 92.3 | 82.3 | 59.5 | 20.3 | 15.5 | 7.5 | M5x0.8 | 51 | 35 | 9 | 4 | 12 | M6X1.0X25 Hexagon bolts |
| 25 | 93.6 | 83.6 | 61.2 | 20 | 15.5 | 8 | M5x0.8 | 51 | 35 | 9 | 4 | 12 | M6X1.0X25 Hexagon boltslts |
| 32 | 113 | 98 | 64 | 31 | 18.5 | 9 | PT1/8 | 62.5 | 40 | 12.5 | 5.5 | 12.5 | M8X1.25X40 Hexagon bolts |
| 40 | 114.8 | 99.8 | 66.5 | 30.3 | 18.5 | 10 | PT1/8 | 62.5 | 40 | 12.5 | 5.5 | 12.5 | M8X1.25X40 Hexagon bolts |
| 50 | 159.9 | 140.9 | 78.6 | 59.6 | 22 | 10.8 | PT1/4 | 94 | 60 | 20 | 8 | 32 | M10X1.5X50 Hexagon bolts |
| 63 | 162.8 | 143.8 | 82.5 | 58.6 | 22 | 11 | PT1/8 | 94 | 60 | 20 | 8 | 32 | M10X1.5X50 Hexagon bolts |
| Bore Size(mm) | N | N1 | O | P | Q | R | S | T | U | V | ZE |
| 20 | 5 | 12 | 24 | 34 | – | Hole4.3, ThreadM5x0.8×6 Depth; Counterbore hole7x5 Depth; (2-side) | M8x1.25 | 15.9 | 8 | 19 | 12 |
| 25 | 5 | 12 | 28 | 40 | – | Hole5.1, ThreadxM6x1x8 Depth; Counterbore hole8x6 Depth; (2-side) | M8x1.25 | 15.9 | 10 | 24 | 12 |
| 32 | 6.5 | 14 | 34 | 44 | 50 | Hole5.1, ThreadM6x1x8 Depth; Counterbore hole8x6 Depth; (2-side) | M10x1.5 | 19 | 10 | 30 | 16 |
| 40 | 6.5 | 14 | 40 | 52 | 58 | Hole6.8, Thread M8x1.25×10 Depth; Counterbore hole9.5×8 Depth; (2-side) | M10x1.5 | 19 | 12 | 30 | 16 |
| 50 | 8 | 18 | 48 | 62 | 71 | Hole6.8, Thread M8x1.25x10Depth; Counterbore hole11x8.5 Depth; (2-side) | M12x1.75 | 25.3 | 12 | 39 | 20 |
| 63 | 8 | 18 | 60 | 75 | 84.5 | Hole6.8, Thread M8x1.25×10 Depth; Counterbore hole11x8.5 Depth; (2-side) | M12x1.75 | 25.3 | 12 | 50 | 20 |
