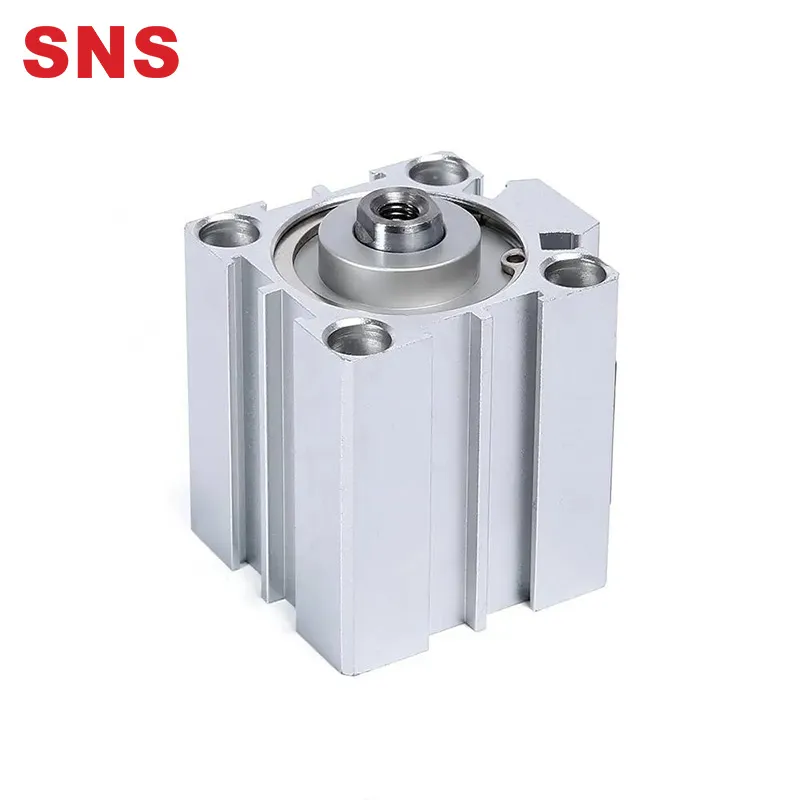

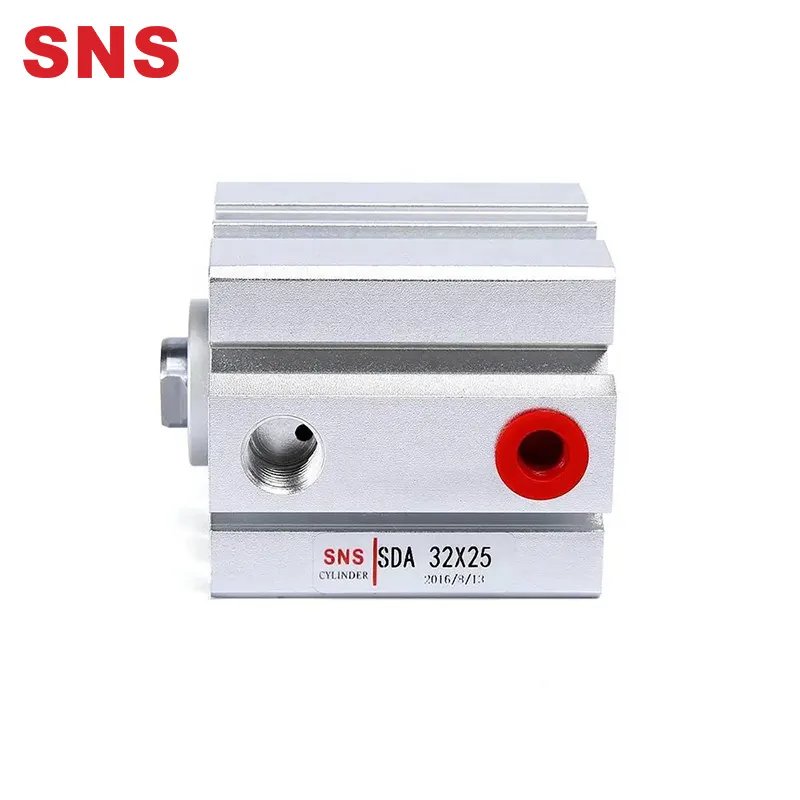

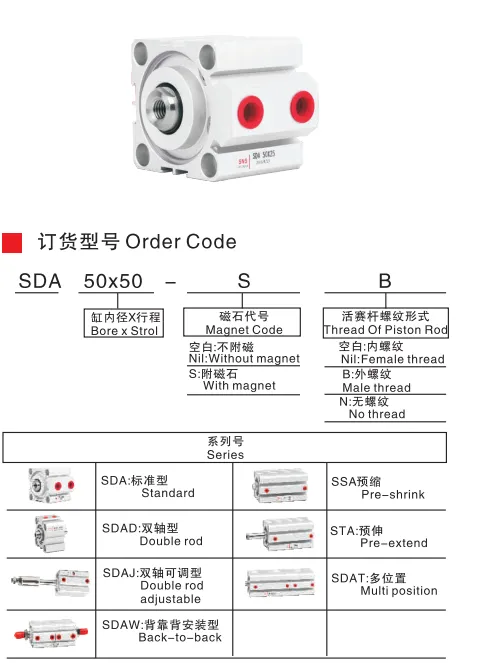

SDA standard cylinder adopts aluminum alloy hard oxidation treatment.
Good friction, no skidding, no deformation, ensure the accuracy of working movement
The piston seal adopts special bidirectional sealing structure with compact size and oil storage function.
High quality Cylinder, for air
Working temperature range: -5 ℃~70 ℃
Made of Aluminum alloy
We strive to be perfect in every detail.

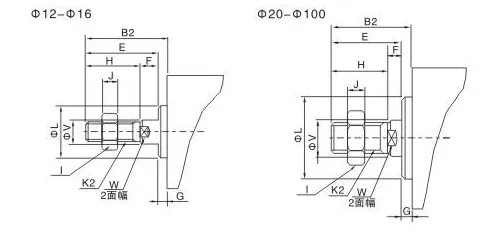

| Bore Size(mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 |
| Acting Mode | Double Acting | |||||||||
| Working Media | Cleaned Air | |||||||||
| Working Pressure | 0.1~0.9Mpa(kg/cm) | |||||||||
| Proof Pressure | 1.35Mpa(13.5kgf/cm) | |||||||||
| Working Temperature | -5~70℃ | |||||||||
| Buffering Mode | With | |||||||||
| Port Size | M5 | 1/8 | 1/4 | 3/8 | ||||||
| Body Material | Aluminum Alloy | |||||||||
| Sensor Switch | CS1-J | CS1-G CS1-J | ||||||||
| Description;SDA100teeth or 25in the cylinder piston rod, and the teeth for Ф 32 piston rod |
| 100≤ST<150, and no magnetic, cylinder length 10. |
| ST≥150, no matter with or without magnetic, cylinder length 10. |
| Bore Size(mm) | Standard Type | Magnet Type | D | B1 | E | F | G | K1 | L | N1 | N2 | O | ||
| A | C | A | C | |||||||||||
| 12 | 22 | 17 | 32 | 27 | / | 5 | 6 | 4 | / | M3X0.5 | / | 7.5 | 5 | M5X0.8 |
| 16 | 24 | 18.5 | 34 | 28.5 | / | 5.5 | 6 | 4 | 1.5 | M3X0.5 | 11 | 8 | 5.5 | M5X0.8 |
| 20 | 25 | 19.5 | 35 | 29.5 | 36 | 5.5 | 8 | 4 | 1.5 | M4X0.7 | 14 | 9 | 5.5 | M5X0.8 |
| 25 | 27 | 21 | 37 | 31 | 42 | 6 | 10 | 4 | 2 | M5X0.8 | 17 | 9 | 5.5 | M5X0.8 |
| 32 | 31.5 | 24.5 | 41.5 | 34.5 | 50 | 7 | 12 | 4 | 3 | M6X1 | 22 | 9 | 9 | G1/8 |
| 40 | 33 | 26 | 43 | 36 | 58.5 | 7 | 12 | 4 | 3 | M8X1.25 | 28 | 9.5 | 7.5 | G1/8 |
| 50 | 37 | 28 | 47 | 38 | 71.5 | 9 | 15 | 5 | 4 | M10X1.5 | 38 | 10.5 | 10.5 | G1/4 |
| 63 | 41 | 32 | 51 | 42 | 84.5 | 9 | 15 | 5 | 4 | M10X1.5 | 40 | 12 | 11 | G1/4 |
| 80 | 52 | 41 | 62 | 51 | 104 | 11 | 20 | 6 | 5 | M14X1.5 | 45 | 14.5 | 14.5 | G3/8 |
| 100 | 63 | 51 | 73 | 61 | 124 | 12 | 20 | 7 | 5 | M18X1.5 | 55 | 17 | 17 | G3/8 |
| Bore Size(mm) | P1 |
| 12 | Double side: Ф6.5 ThreadM5*0.8 Through hole Ф4.2 |
| 16 | Double side: Ф6.5 ThreadM5*0.8 Through hole Ф4.2 |
| 20 | Double side:Ф 6.5 ThreadM5*0.8 Through hole Ф4.2 |
| 25 | Double side:Ф 8.2 ThreadM6*1.0 Through hole Ф4.6 |
| 32 | Double side:Ф 8.2 ThreadM6*1.0 Through hole Ф4.6 |
| 40 | Double side: Ф10 ThreadM6*1.25 Through hole Ф6.5 |
| 50 | Double side: Ф11 ThreadM6*1.25 Through hole Ф6.5 |
| 63 | Double side: Ф11 ThreadM8*1.25 Through hole Ф6.5 |
| 80 | Double side: Ф14 ThreadM12*1.75 Through hole e:Ф9.2 |
| 100 | Double side: Ф17.5 ThreadM14*12 Through hole Ф11.3 |
| Bore Size(mm) | P3 | P4 | R | S | T1 | V | W | X | Y |
| 12 | 12 | 4.5 | / | 25 | 16.2 | 6 | 5 | / | / |
| 16 | 12 | 4.5 | / | 29 | 19.8 | 6 | 5 | / | / |
| 20 | 14 | 4.5 | 2 | 34 | 24 | 8 | 6 | 11.3 | 10 |
| 25 | 15 | 5.5 | 2 | 40 | 28 | 10 | 8 | 12 | 10 |
| 32 | 16 | 5.5 | 6 | 44 | 34 | 12 | 10 | 18.3 | 15 |
| 40 | 20 | 7.5 | 6.5 | 52 | 40 | 16 | 15 | 21.3 | 16 |
| 50 | 25 | 8.5 | 9.5 | 62 | 48 | 20 | 17 | 30 | 20 |
| 63 | 25 | 8.5 | 9.5 | 75 | 60 | 20 | 17 | 28.7 | 20 |
| 80 | 25 | 10.5 | 10 | 94 | 74 | 25 | 22 | 36 | 26 |
| 100 | 30 | 13 | 10 | 114 | 90 | 25 | 22 | 35 | 26 |
