The Essential Guide to Drain Solenoid Valves
What Is a Drain Solenoid Valve?
A drain solenoid valve is an electrome-chanical device designed to automatically discharge liquids, especially condensate, from industrial systems. These valves rely on electromagnetic force to open and close fluid pathways on demand. They’re especially prevalent in compressed air systems, where controlling moisture is critical to performance and equipment longevity.
By replacing manual drainage, solenoid valves help increase operational efficiency, reduce maintenance costs, and prevent common issues such as rust, oil contamination, and unexpected system shutdowns caused by accumulated condensate.
Unlike traditional manual drain valves, solenoid-operated versions offer greater precision and automation. They’re essential in enclosed, hazardous, or hard-to-reach areas where manual access is limited. Remote control and programmable timers also allow for predictable, consistent drainage, improving system reliability.

Internal Structure and Working Principle
Engineered for efficiency, solenoid drain valves provide dependable operation in a space-saving design while requiring minimal upkeep. A typical drain solenoid valve includes:
1. Solenoid coil—Receives an electric signal and generates magnetic force to actuate the valve core.
2. Valve core—Moves under magnetic actuation to regulate flow (open/closed).
3. Timer module (in some models)—Allows users to set opening and closing intervals.
4. Connectors and filters—Match the valve to piping systems and help prevent solid particles from entering the valve body.
Example:
A valve equipped with a timer can be set to discharge condensate every 60 minutes for 5 seconds per cycle, making it ideal for moisture-heavy compressed air systems.
Main Types of Drain Solenoid Valves
Drain solenoid valves are categorized into four common types, each suited for varying system conditions:
- Timer-controlled: Ideal for refrigerated dryers and air receivers, offering steady and reliable drainage cycles.
- Pilot-operated: Uses pressure differential between the inlet and outlet to operate the valve; suitable for high-pressure or continuous-run systems.
- Direct-acting: Works without needing pressure differential, making it suitable for low-pressure or intermittent systems with quick response times.
- Drain valves with built-in filters: Designed for fluids with contaminants, such as oily compressed air, to reduce clogging risks.
Common Application Areas
Thanks to their automation, compact size, and minimal maintenance needs, solenoid drain valves are used in a wide range of industries:
- Compressed air systems—Automatically expel condensate to prevent oil emulsification.
- Periodic draining of air tanks and piping prevents corrosion buildup.
- Refrigerated air dryers—Maintain system dryness and improve air output quality.
- Chemical and steam systems Help avoid water hammer and energy loss.
You’ll also find them in sectors such as wind power, automotive, food processing, and electronics, where fluid control is tightly linked to product quality and uptime.
How to Choose the Right Drain Solenoid Valve
Choosing the right valve isn’t about picking the most expensive—it’s about finding the right fit. Here are the key factors to consider:
- Port size: Ensure valve compatibility with your piping system. Common sizes include 1/4″, 3/8″, and 1/2″.

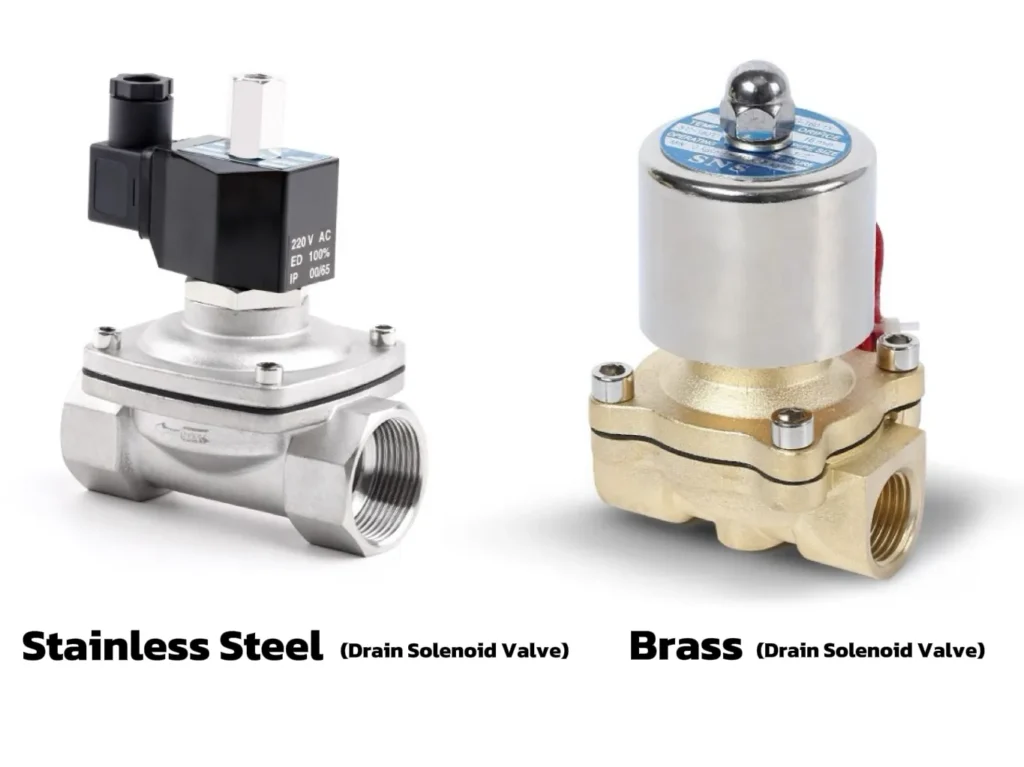

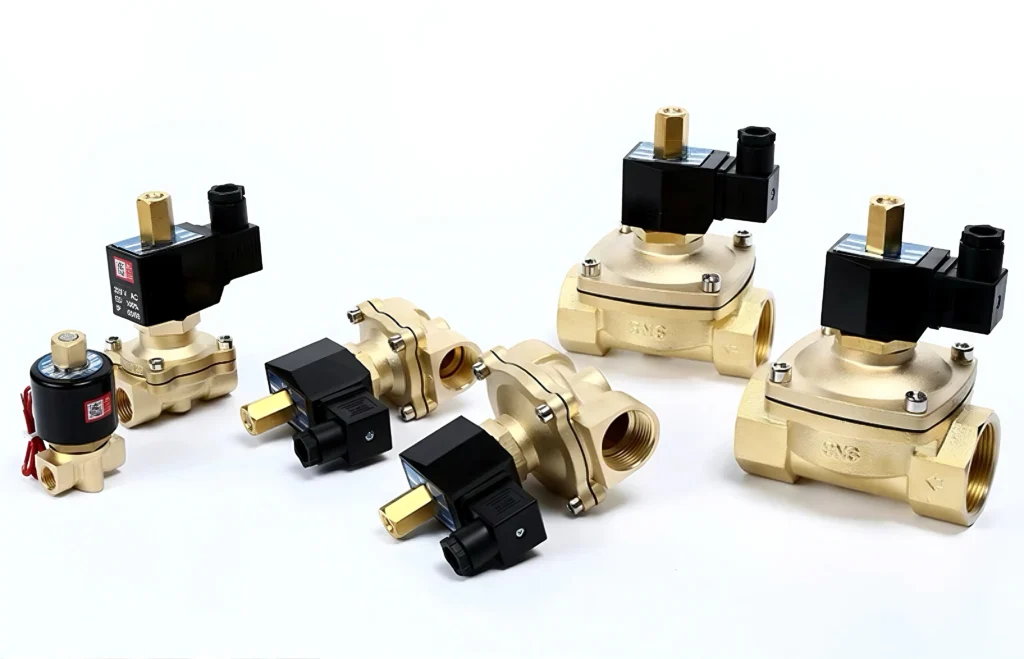

- Material:
- Brass—Affordable and suitable for neutral fluids.
- Stainless steel—Corrosion-resistant, ideal for chemical or humid environments.
- Engineering plastics—Lightweight and good for low-load systems.
- Voltage options: Make sure the valve is compatible with your system’s power supply (e.g., AC220V, DC24V).
- Control features: Determine whether you need a timer, manual override, or remote control capability.
- Pressure and temperature ratings: The valve must handle your system’s maximum operating conditions.

Select models with LED indicators on the timer module. They provide a quick visual check to confirm that the valve is operating within its programmed cycle—saving time during inspection and maintenance.
Proper Installation Tips
To ensure reliable operation, follow these installation guidelines:
- Install the valve horizontally to allow condensate to collect naturally at the drain port.
- Keep the solenoid coil facing upward to avoid liquid intrusion.
- Flush the piping system before installation to prevent debris like welding slag or metal shavings from clogging the valve.
- Use housings with IP65 or higher protection ratings, especially for outdoor applications.
If the valve is installed on vibrating machinery, add rubber isolators or flexible connectors to reduce stress on the valve body and internal components. This simple step can extend service life significantly.
