The Role of Rotary Fittings in Hydraulic and Pneumatic Systems

In hydraulic and pneumatic systems, rotating systems are often required when gases and fluids experience unsteady conditions, when an excavator moves slowly across rocky, uneven terrain or a robot rapidly stacks boxes.

Normal fittings that are not designed for high and low speeds will deform, hoses will twist, and eventually fail. Rotary fittings (also known as swivel joints, rotary unions, or rotating couplings) were developed to address this challenge. They enable fluid or air to flow between stationary and rotating components without leaks or tangles, preventing the system from stalling due to motion.


Structure and Working Principles

Think of a rotary fitting as a translator between two worlds: the stationary and the rotating.

Its key components include:

1.High-strength polymer body: Provides structural integrity and corrosion resistance.

2.Clamp mechanism: Secures the connection and prevents disengagement under vibration.

3.Bearing assembly: Ensures smooth and stable rotation under various loads.

4.Threaded interfaces: Enable secure and leak-free connections to fluid or pneumatic lines.

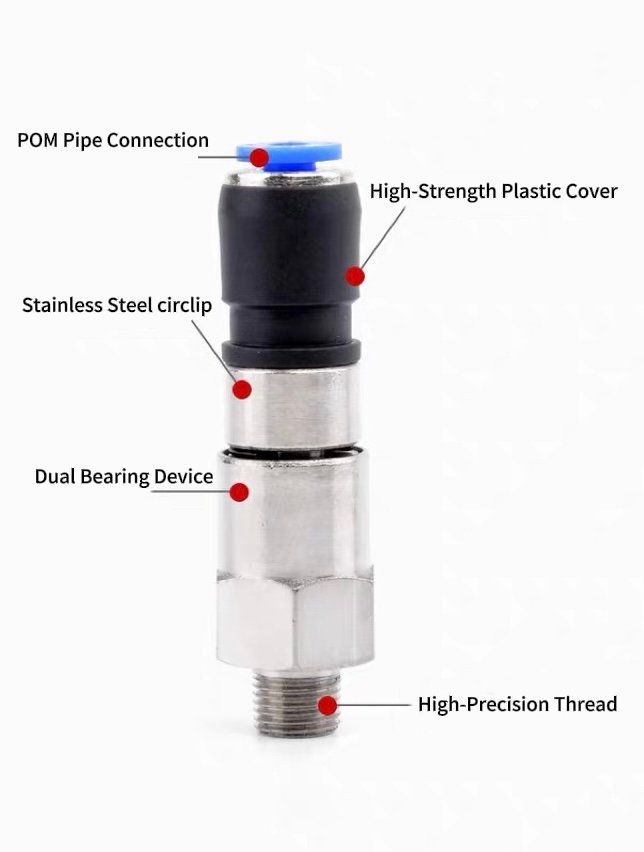

Dual bearing device structure of rotary fittings

Rotary fittings are available in single-passage designs for individual circuits and multi-passage designs when multiple media lines must be integrated into a single rotating joint.

A wind turbine serves as a typical example. Its blades need to constantly adjust their pitch angle to maximize wind energy capture. A multi-passage rotary union transmits hydraulic fluid through the hub to the pitch control system. Without it, flexible hoses would twist, wear, and fail within a short period.

Applications

Hydraulic Systems

Hydraulic systems push fluid under immense pressure—often thousands of psi. Rotary fittings make this power usable in parts that spin or swivel.

Typical uses:

  • Excavators and cranes: Delivering oil to rotating booms and buckets.
  • Injection molding machines: Powering hydraulic cylinders inside moving molds.
  • Wind turbines: Pitch control and yaw systems.

Pneumatic Systems

Compressed air systems work at lower pressures than hydraulics but often demand faster cycles. Rotary fittings here prioritize speed and leak prevention.

Common uses:

  • Rotary tables in automation: Delivering air to spinning actuators.
  • High-speed packaging lines: Feeding air to grippers or sealers on rotating parts.
  • Air-powered tools: Allowing continuous spin without tangling hoses.

Benefits and Limitations

Advantages

Rotary fittings don’t just prevent hose tangles—they fundamentally improve machine reliability.

  • Extended service life: By preventing hose fatigue, fittings cut replacement costs.
  • Design flexibility: Engineers can route multiple circuits through a single joint.
  • Safety: Prevent sudden hose failure that could spill oil or whip dangerously.
  • Performance consistency: Maintain stable flow rates even at high rotation speeds.

Challenges and Constraints

Every solution has trade-offs, and rotary fittings are no exception.

  • Seal wear: Even the best seals degrade under constant friction.
  • Operating limits: Exceeding rated pressure or speed causes premature failure.
  • Cost: Fittings are pricier than hoses, and maintenance requires expertise.
  • Complex selection: Choosing the wrong seal material (e.g., oil seals for air) can cut lifespan dramatically.

In pneumatic systems, for example, air’s lack of lubrication makes seal wear a real concern. Manufacturers often counter this with special coatings or self-lubricating materials.

Rotary fittings might be small components, but they unlock big possibilities. They allow continuous rotation where hoses would fail, making modern hydraulics and pneumatics safer, longer-lasting, and more efficient.


Ready to protect your investments? Contact us today to reguest a quote or to learn more about our full range of Rotary Fitting solutions. Our team is standing by to help you find the perfect product for your project.

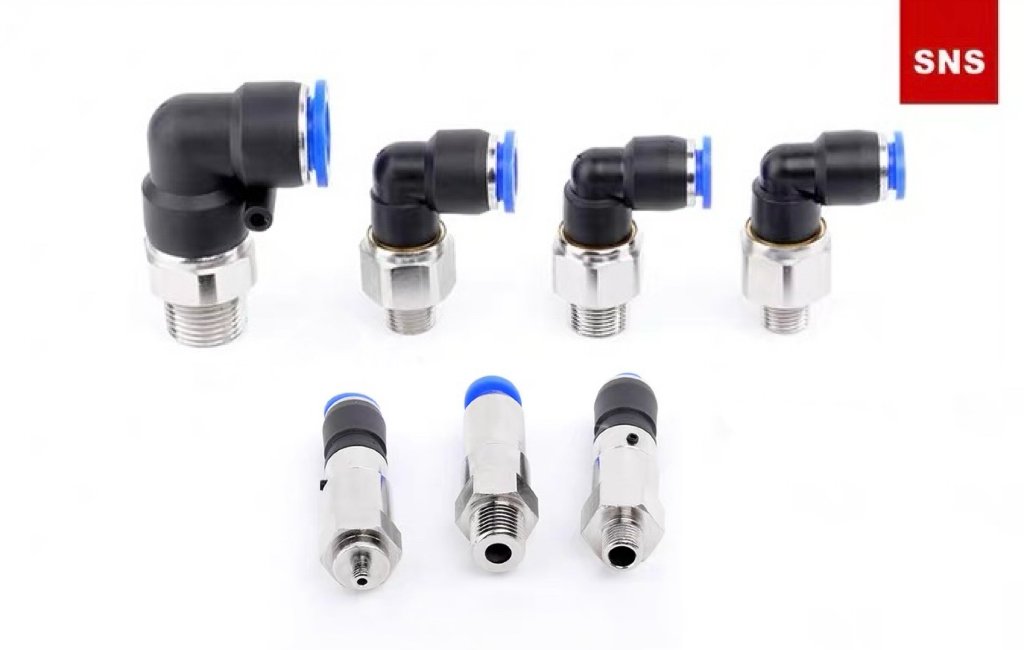

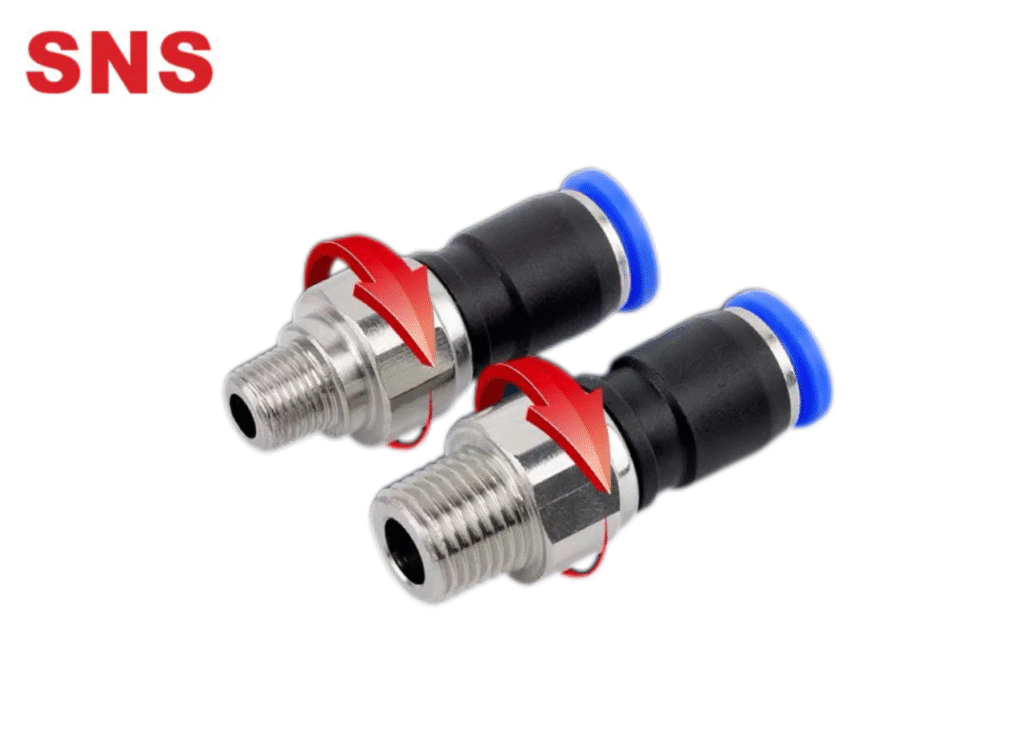

Collection of rotary fittings
