The Ultimate Guide to Straight Fitting: Unlock Reliable Connections for Your Pneumatic and Fluid Systems
Table of Contents
What Is a Straight Fitting?
A straight fitting is a type of connector used to join two sections of tubing or pipe in a direct, linear path. It is widely employed in pneumatic, hydraulic, and fluid systems to ensure a secure, leak-free connection. Straight fittings are essential for maintaining uninterrupted flow of air, water, or other fluids, making them a fundamental component in industrial automation, manufacturing, and machinery.
Types of Straight Fittings
Straight fittings are available in various forms to suit different applications:

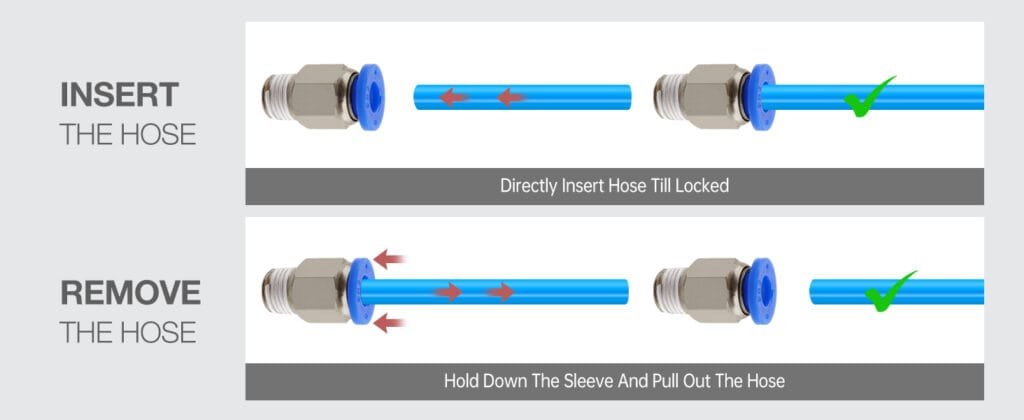

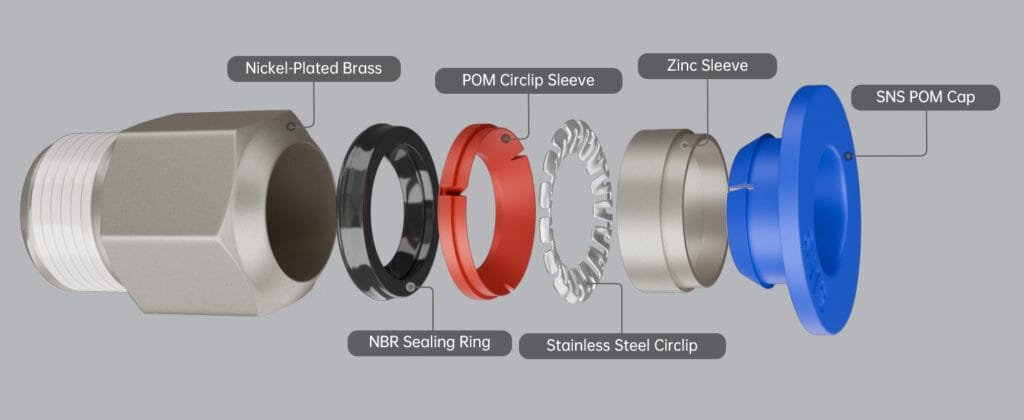

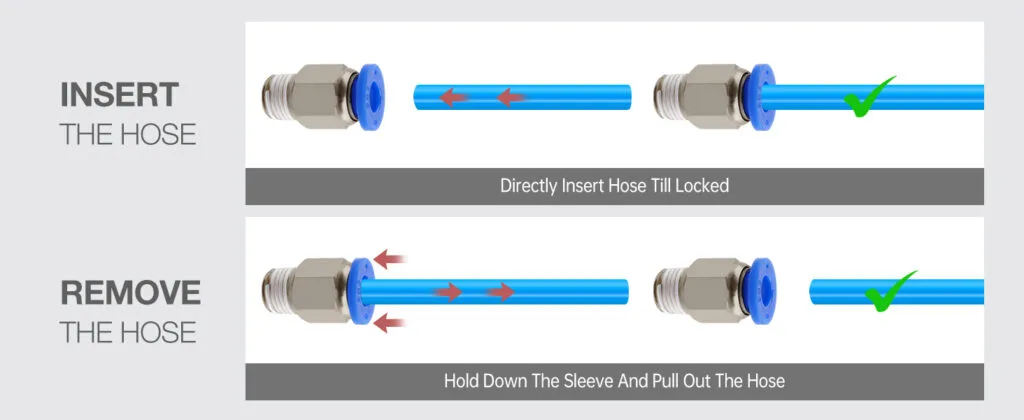

- Push-to-Connect Straight Fittings: These allow quick and tool-free connection and disconnection of tubing, ideal for pneumatic systems where frequent maintenance or changes are required.
- Threaded Straight Fittings: Featuring male or female threads, these are suitable for connecting pipes or hoses with threaded ends, ensuring a tight and reliable seal.
- Compression Straight Fittings: These use a compressive force to secure the tubing, commonly used in high-pressure or hydraulic applications.
Materials Used in Straight Fittings
The choice of material affects the fitting’s durability and compatibility with different environments:
- Brass: Offers excellent corrosion resistance and is suitable for air, water, and non-aggressive fluids.
- Stainless Steel: Ideal for harsh or corrosive environments, providing superior strength and longevity.
- Plastic (e.g., Polyethylene, Nylon): Lightweight and resistant to chemicals, suitable for low-pressure pneumatic systems.
Applications of Straight Fittings
Straight fittings are crucial in a wide range of industries and systems:
- Pneumatic Automation: Used to connect air lines in automated machinery and production equipment.
- Fluid Transfer Systems: Ensure safe and efficient movement of water, oil, or chemicals in industrial processes.
- Automotive Manufacturing: Connect various fluid and air lines in vehicles, supporting braking, fuel, and air conditioning systems.
- HVAC Systems: Maintain air flow in heating, ventilation, and air conditioning installations.
How to Select the Right Straight Fitting
Choosing the correct straight fitting involves several important considerations:
- System Pressure and Temperature: Ensure the fitting can withstand the operating conditions of your system.
- Tubing or Pipe Size: Match the fitting size precisely to your tubing or piping for a leak-free connection.
- Material Compatibility: Select a material that resists corrosion and is compatible with the fluid or gas being transported.
- Seal Type: Consider O-ring or gasket materials for enhanced sealing performance in demanding applications.
Installation Tips for Straight Fittings
- Clean All Surfaces: Remove debris and contaminants before installation to ensure a proper seal.
- Use Appropriate Tools: Avoid overtightening, which can damage threads or deform the fitting.
- Check for Leaks: After installation, test the system under pressure to confirm a secure, leak-free connection.
Why Choose SNS Pneumatic for Straight Fittings?
SNS Pneumatic specializes in manufacturing high-quality straight fittings tailored to diverse industrial needs. Our products feature:
- Precision Engineering: Manufactured to strict standards for reliable performance.
- Wide Selection: Available in multiple sizes, materials, and configurations.
- Custom Solutions: Ability to provide fittings designed for your specific requirements.
- Expert Support: Professional advice and technical support to help you select the best product for your application.
Contact Us
Upgrade your pneumatic or fluid system with reliable straight fittings from SNS Pneumatic. Visit snspneumatic.com to explore our product range, request a quote, or consult our technical team for expert guidance.
FAQs
Can straight fittings be reused?
Some types, like push-to-connect fittings, can be reused if undamaged, but always inspect for wear before reinstallation.
How can I tell if a straight fitting is leaking or needs replacement?
Look for visible signs of fluid or air leakage, listen for hissing sounds, or check for drops in system pressure. Regular inspection helps prevent downtime.
Can I get custom-sized straight fittings for my unique application?
Many manufacturers, including SNS Pneumatic, offer customization services to match your specific size, material, or performance requirements.
What maintenance tips can extend the life of my straight fittings?
Keep fittings clean, avoid overtightening, and regularly inspect for wear or corrosion to ensure long-lasting, leak-free performance.
