Solenoid valves are electromechanically operated valves controlled by an electric current running through a solenoid. They are widely used in fluid power pneumatic and hydraulic systems, to control cylinders, fluid power motors or larger industrial valves.
Understanding the various types of solenoid valves can significantly enhance your ability to make informed decisions for applications requiring precise flow control. Delve deeper into this article to uncover the intricacies of each valve type and ensure optimal performance for your specific needs.
Types of Solenoid Valves
| Type | Functionality | Application Example |
|---|---|---|
| Direct-Acting | Controls valve orifice directly; functions irrespective of line pressure | Low flow rate gas/liquid control |
| Pilot-Operated | Uses system pressure differential via pilot/main valve mechanism | High-flow rate industries like irrigation |
| 2-Way | One inlet, one outlet; simple open/close functionality | General on/off control systems |
| 3-Way | Three ports managing flow paths converging/diverging/diverting flows | Systems needing alternate paths/mixing flows |
| 4-Way | Four ports designed primarily for dual acting pneumatic systems | Actuation systems requiring precise control |
Direct-acting valves
Direct-acting solenoid valves are the most elemental type within the landscape of electromechanically-operated valves. They function independently of the pressure differential across the valve, as the solenoid directly controls the valve’s opening and closing. Within these devices, an electromagnet in the form of a coil generates a magnetic field when electrically energized, causing a plunger inside to move. This movement directly opens or closes the valve orifice, allowing for precise control over fluid flow.
The direct-action design affords reliability in scenarios where low flow rates and low-pressure conditions are present, ensuring operational efficacy regardless of system backpressure. Given their straightforward mechanism, direct-acting solenoid valves exhibit rapid response times and can effectively operate at zero head pressure; this makes them ideally suited for a broad spectrum of applications that require fast and frequent on-off cycling.
However, certain limitations include higher energy consumption due to constant power required to keep the valve actuated and potential restrictions in flow capacity due to size constraints inherent in housing both the solenoid mechanism and valve components compactly enough for efficient operation.
| Feature | Description |
|---|---|
| Mechanism | Electromagnetic coil directly moves a plunger to open or close the valve’s orifice. |
| Pressure Independence | Operates reliably without regard to pressure differential; effective even at low pressure and flow rates. |
| Response Time | Fast action is typical due to direct actuation, which is ideal for applications with frequent on-off cycling requirements. |
| Energy Consumption | Tend to utilize more energy since continuous power is needed to maintain valve position (open or closed). |
| Flow Capacity | Typically limited by design constraints which must balance solenoid size with functional efficiency. |
| Ideal Applications | Suitable for various uses including small machinery where reliable performance at low pressures is necessary |
Pilot-operated valves
Pilot-operated solenoid valves function by utilizing system pressure to open and close the main orifice in the valve. They comprise two components: the pilot orifice and the main valve body. When energized, the solenoid’s electromagnetic force lifts a small plunger, allowing system pressure to move through the pilot orifice. This action releases pressure from above the diaphragm or piston, which consequently is forced up by system pressure below it, opening the main orifice and permitting full flow.
These valves require less electrical power compared to direct-acting valves since they use line pressure for operation. The reduced energy consumption makes them suitable for larger valve designs that would otherwise require hefty coils. Pilot-operated valves typically need a minimum operating pressure differential to function correctly; therefore, they might not be suitable in low-pressure systems.
Another variant of pilot-operated solenoid valves includes internally and externally piloted types. Internally piloted valves use the process fluid itself to operate, while externally piloted versions respond to an external control line which may use a different fluid or air source providing operational flexibility.
| Characteristic | Detail |
|---|---|
| Function | Utilize system pressure to aid in opening and closing |
| Design | Consist of a pilot orifice and a main valve body |
| Operating Principle | Opening occurs when system pressure is relieved above diaphragm/piston through pilot orifice |
| Electrical Requirement | Generally lower than direct-acting valves due to reliance on fluid line pressure |
| Pressure Differential | Requires minimum operating pressure differential; not ideal for very low-pressure applications |
| Variants | Include both internally and externally piloted types for various controls requirements |
2-Way Valves
2-way solenoid valves are one of the most basic types of valves with two ports: one inlet and one outlet. They are designed to regulate the flow of fluid or gas in a fully open or fully closed configuration. The operation of these valves is straightforward; when energized, the solenoid actuates to either allow or block flow through the valve body.
The key advantage of 2-way solenoid valves is their simplicity and effectiveness in applications where only a single-directional flow control is required. They can be employed across various industries for tasks ranging from simple on/off applications to more complex systems that necessitate precise control over fluid dynamics.
When selecting a 2-way solenoid valve, numerous factors need consideration for optimal performance, such as material compatibility with the media being controlled, pressure ratings suited to system requirements, and appropriate sizing to handle the desired flow rate without causing excessive pressure drops.
In contrast to pilot-operated valves, direct-acting 2-way solenoid valves have a plunger that is directly coupled with the solenoid coil. This means that they do not rely on differential pressure to operate and can function at zero-head pressure, making them highly reliable for low-pressure applications.
Given their design simplicity and reliability, 2-way solenoid valves are ideal for straightforward shut-off applications and serve as a vital component in both liquid and gas control systems.
| Feature | Description |
|---|---|
| Type | 2-Way Solenoid Valve |
| Ports | One inlet (port 1), One outlet (port 2) |
| Operation | Allows or blocks flow; Fully open/closed state |
| Application | On/Off control, Precise flow regulation |
| Industries | Varied – includes water treatment, manufacturing, HVAC |
| Flow Control Direction | Unidirectional |
| Operation Mechanism | Direct-acting capability suitable for low-pressure systems |
| Advantages | Simplicity, effectiveness, reliability |
| Considerations for Selection | Material compatibility with media, Pressure rating vs. system requirements, Accurate sizing for desired flow rate |

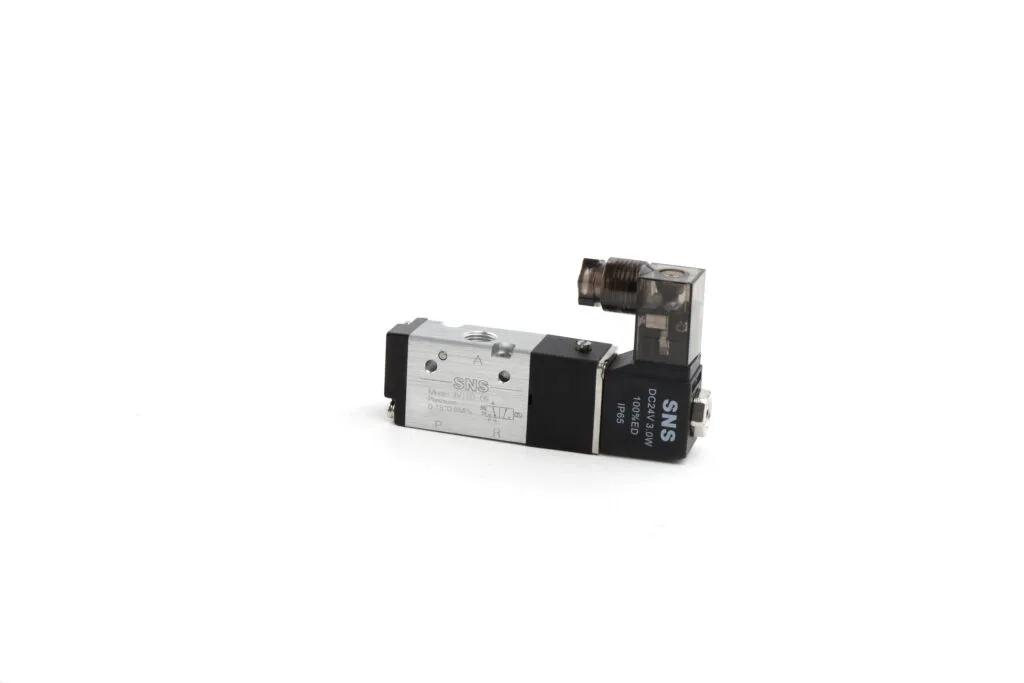

3-Way Solenoid Valves
3-Way solenoid valves are versatile components in fluid control systems, capable of directing flow between three different ports. These valves typically feature one inlet, one outlet, and one exhaust port. Their operation can be tailored for a variety of applications by enabling flow paths to connect or separate the ports in specific ways when the valve is energized or de-energized.
Operationally, 3-way valves are designed to handle various tasks such as diverting flow from one line to another, mixing two fluids, or allowing safe venting or blocking of the flow. They come in two essential operation types: normally closed (NC), where the default state blocks the flow until an electric current opens the valve; and normally open (NO), where the valve allows flow until it receives an electrical signal to close.
A less common variant is the universal 3-way valve, which can be configured either as NC or NO depending on installation and application needs. The versatility of 3-way solenoid valves makes them suitable for a wide range of industries including pneumatic and hydraulic systems, heating and cooling applications, and general plant automation.
| Feature | Description |
|---|---|
| Ports | 3 ports: Inlet, Outlet, Exhaust |
| Operation Types | Normally Closed (default state blocks flow), Normally Open (default state allows flow), Universal (configurable as NC or NO) |
| Applications | Fluid diversion, mixing fluids, venting/blocking |
| Industries | Pneumatics, hydraulics, HVAC, automation |
| Configurability | Versatile design for various operational pathways |

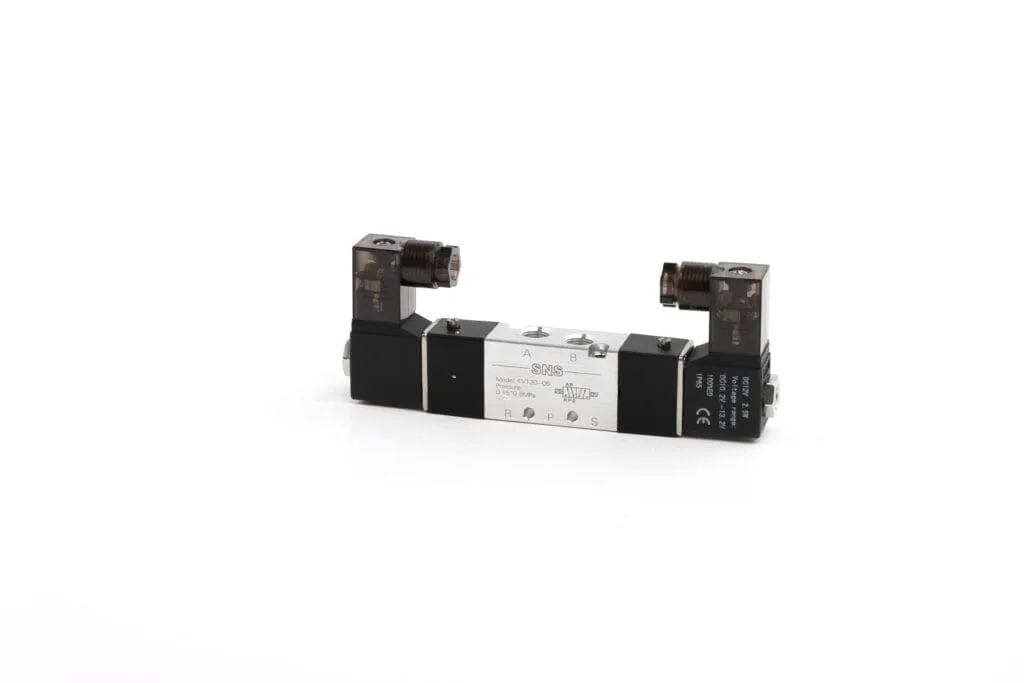

4-Way Valves
4-way solenoid valves are complex devices designed to manage the direction of air or fluid flow within pneumatic or hydraulic systems. These valves typically have four port connections – two for inlet pressure, one for exhaust, and a fourth for the working connection to actuators like cylinders or larger valves. Upon activation by an electric current through the solenoid, these valves redirect the flow from one line to another.
One of the characteristic features of a 4-way valve is its ability to control double-acting actuators; they can alternatively apply pressure to and exhaust it from each side of an actuator, allowing for controlled movement in both directions. In most cases, these valves come with either five ports (adding an additional exhaust) facilitating better speed control in actuation or sometimes even more, depending on advanced industrial requirements.
The design intricacy of 4-way solenoid valves makes them suitable for a variety of applications where accurate movement control is required. Common uses include but are not limited to material handling equipment, automation systems, and various manufacturing processes where they contribute significantly to precision and efficiency. One should ensure that all key operational specifications meet system requirements when selecting a 4-way solenoid valve.
| Feature | Description |
|---|---|
| Function | Change direction of flow |
| Ports | Minimum four: two inlets, one exhaust, one outlet (additional ports possible) |
| Actuator Control | Can control double-acting actuators |
| Applications | Material handling, automation systems, manufacturing processes |
| Movement Control | Allow for controlled bidirectional movement |
Operation
Solenoid valves are classified by their operational state when de-energized, which is either normally closed (NC) or normally open (NO). A normally closed solenoid valve remains closed until it is energized, preventing fluid flow through the valve. When the coil is powered, the valve opens and allows flow. This is a common configuration ensuring safety and conservation of resources as it defaults to a shut-off state in case of power failure.
Conversely, a normally open solenoid valve stays open when unpowered, enabling fluid to pass through. Upon energization, the valve closes and stops the flow. This design is particularly used when a default flow condition is desired for system functionality or for fail-safe reasons related to process requirements.
| Feature | Normally Closed Solenoid Valves | Normally Open Solenoid Valves |
|---|---|---|
| Default State | Closed (no flow) | Open (free flow) |
| Actuation State | Opens with electricity | Closes with electricity |
| Power Failure State | Remains closed (safe position) | Remains open (can be safe or risky depending on application) |
| Typical Use Case | Safety systems, conservation-focused applications where default no-flow is necessary | Systems requiring constant flow unless actively stopped for process needs |
| Energy Consumption | Consumes energy when open state needed for operation | Consumes energy when closed state needed for operation |
Normally Closed
A normally closed (NC) solenoid valve is designed to block the flow of media when the coil is de-energized. In its resting state, the plunger or seal within the valve body is pushed against an orifice, creating a seal that prevents fluid from passing through. Upon receiving electrical current, the electromagnetic force lifts the plunger away from the orifice, thus allowing flow through the valve. This type of solenoid valve is commonly used in applications where it’s safer or more practical to have a system default to blocking flow whenever power is lost or in systems requiring automatic shut-off capabilities. The NC configuration ensures that critical processes maintain control without continuous power consumption because they remain closed until activated.
| Aspect | Description |
|---|---|
| State at Rest | Plunger/seal blocks flow; valve is closed |
| Operation Trigger | Application of electrical current |
| Energy Consumption | Only consumes power when open (activated) |
| Safety Feature | Defaults to blocking fluid freely if there’s a power failure |
| Typical Use Case | Systems requiring automatic shut-off and safe default condition |
Normally Open
A Normally Open (NO) solenoid valve is a type of valve that remains open when de-energized, allowing media flow through it. Once an electrical current is applied to the coil, the valve closes and stops the flow. This type of valve is selected for systems where continuous flow is needed and only interrupted when necessary. They are useful in applications requiring safety considerations, as they default to an “open” state in the event of a power failure. The NO configuration ensures that critical cooling or lubrication processes, for example, continue without interruption during outages. Careful consideration should be given to the proper selection based on system’s failsafe requirements.
| Feature | Description |
|---|---|
| Valve State | Open when de-energized; closed when energized |
| Applications | Systems requiring continuous flow by default |
| Safety Consideration | Ensures flow in case of electrical power failure |
| System Requirement | Suitable for failsafe systems demanding constant operation |
Universal Valves
Universal solenoid valves are a versatile type of valve that can be configured in both Normally Closed (NC) and Normally Open (NO) states, providing an adaptable solution for control systems. These valves are adept at managing the direction of flow, making them suitable for various applications where the control requirements may change. By integrating a universal solenoid valve into a system, the user has the advantage of being able to switch between NC and NO operations without needing to replace the entire valve unit. This flexibility is particularly valuable in complex systems or prototypes where initial system requirements might evolve over time.
The configuration of a universal solenoid valve is typically accomplished through either manual adjustment or by swapping certain internal components such as the spring or diaphragm orientation. In comparison with specialized solenoid valves that are dedicated to singular operation styles, universals offer a pragmatic approach to flow management in dynamic fluid control systems.
| Feature | Description |
|---|---|
| Type | Universal Solenoid Valve |
| Versatility | Can function as Normally Closed (NC) or Normally Open (NO) |
| Application | Suitable for variable control requirements that may change over time |
| Configuration | May require manual adjustments or swapping of internal components for operation changes |
| Advantages | Flexibility, reduced need for multiple valves, cost-efficiency in evolving systems |
How to Choose a Solenoid Valve
Selecting the appropriate solenoid valve requires careful consideration of several factors to ensure compatibility with your system and optimal performance. Begin by assessing the flow rate; this measures how much fluid can pass through the valve and is usually denoted in gallons per minute (GPM) or liters per minute (LPM). The valve must accommodate your system’s required flow rate for efficient operation.
Next, evaluate the pressure specifications of both your system and the solenoid valve. Valves are rated for certain pressure ranges, and choosing one that supports the pressure levels in your application prevents malfunction or damage.
The media compatibility pertains to the materials used in valve construction, which should be compatible with the fluids or gases it will control to avoid corrosion or deterioration. This includes checking for resistance against any chemicals present in the media.
When considering size, ensure that the port size of the solenoid valve matches the piping of your system for a proper fit. Inadequate sizing can result in leakage or reduced flow efficiency.
It’s imperative to consider environmental factors such as temperature and humidity which could affect valve performance. Certain valves are designed for high temperatures or moisture-rich environments; thus, an appropriate choice eliminates risks of failure under operational conditions.
Lastly, pay attention to electrical considerations, including voltage and current requirements. The electrical supply must align with what the solenoid coil needs to function without risk of overloading or insufficient power.
By meticulously evaluating these criteria, you select a solenoid valve that not only fits your application but also delivers reliability and longevity.
| Criteria | Description | Considerations |
|---|---|---|
| Flow Rate | Amount of fluid passing through | Ensure alignment with system’s GPM/LPM |
| Pressure | Operating pressure range of both system & valve | Must support system pressures |
| Media Compatibility | Resistance against media’s chemicals | Check material construction compatibility |
| Size | Port size matching with system piping | Prevents leakage & maintains flow efficiency |
| Environmental Factors | Temperature & humidity resilience | Selection based on operating environment |
| Electrical Considerations | Voltage & current requirements | Align electrical supply with coil needs |
In conclusion
In conclusion, solenoid valves are versatile components essential in various industries due to their ability to control the flow of gases and liquids with precision, efficiency, and reliability.
